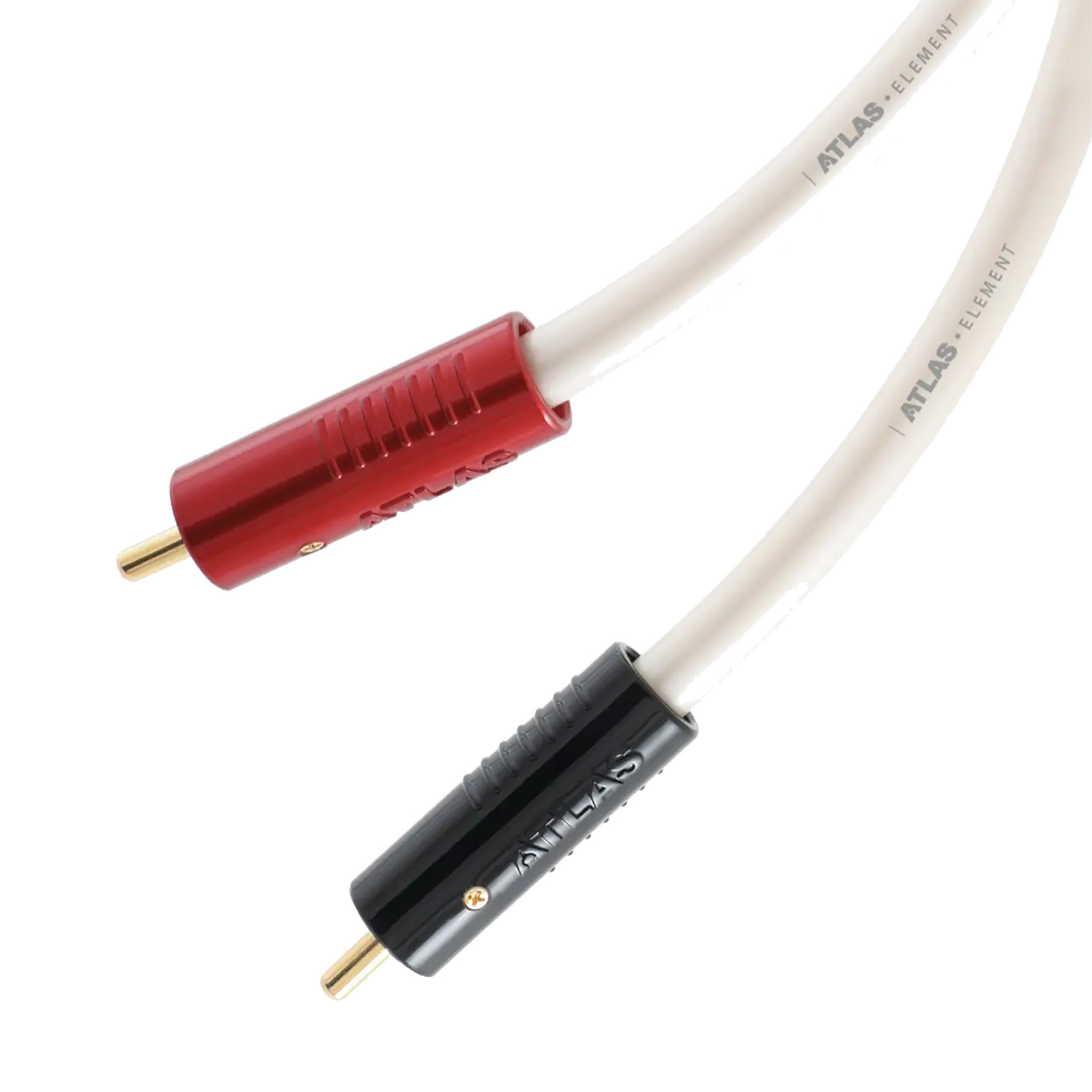

Atlas Element Achromatic X Stereo RCA Interconnects

Element Achromatic X Stereo RCA Interconnect Cable, by Atlas Cables.

This latest generation Element cable benefits from the Atlas policy of continuous improvement, fine-tuning both the physical and electrical properties to achieve a higher specification and superior quality of construction.

The signal conductor is a high-quality OCC copper, fully-shielded to ensure resistance to the RFI (Radio Frequency Interference) which can raise noise levels in a poorly-shielded cable.

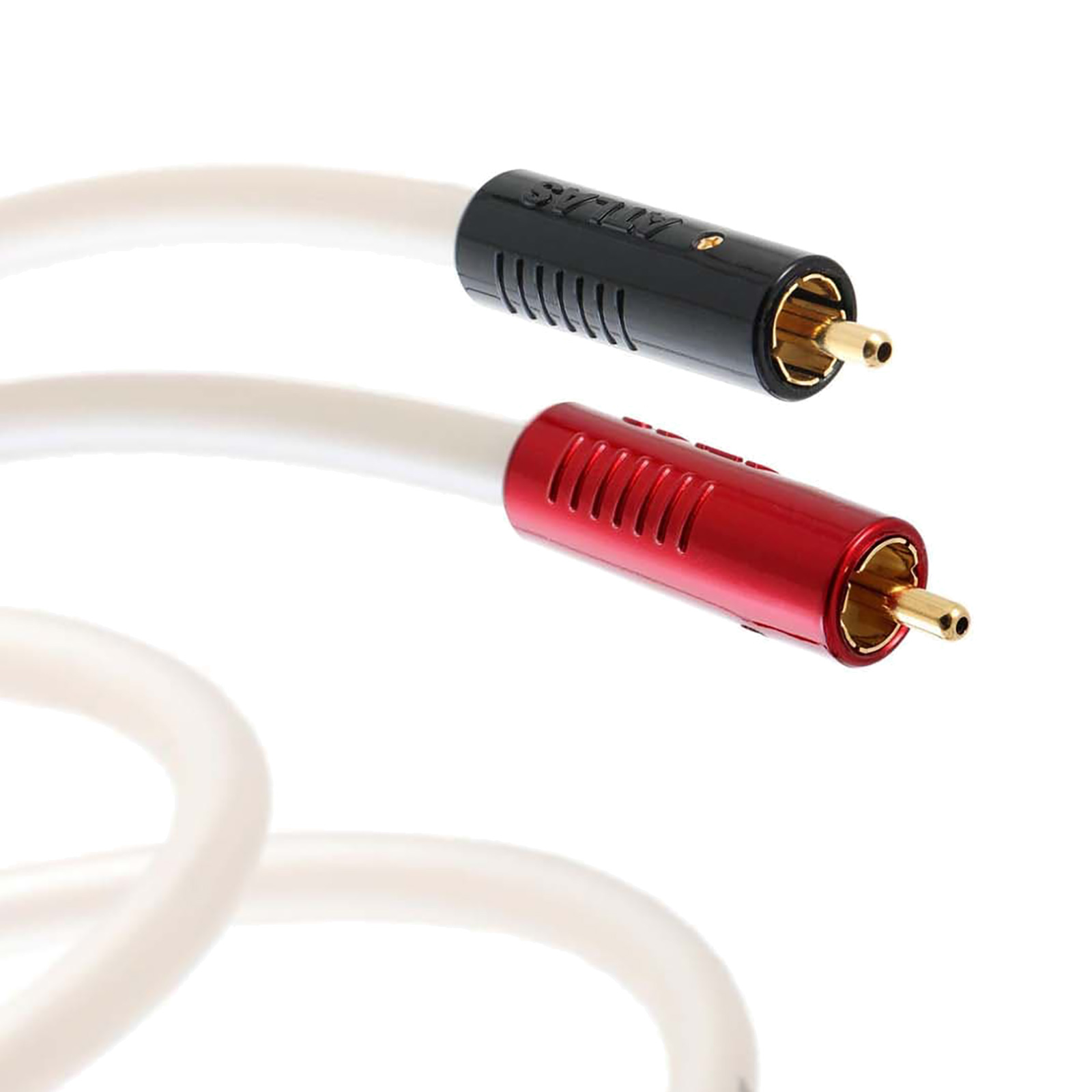

,p>The Element is fitted with the newest version of the Achromatic non-magnetic RCA plug. This low-mass Achromatic connector features a precise solder-free, cold-weld connection, creating a coherent, continuous signal path with no degrading ‘barriers’ between different materials.

The result is a cable which creates a large three-dimensional soundstage and significant levels of fine detail without the artificial brightness which affects many budget cables. The Element Achromatic X RCA offers a neutral, relaxing sound and has proven to be an excellent foundation for further system improvements.

Length Options

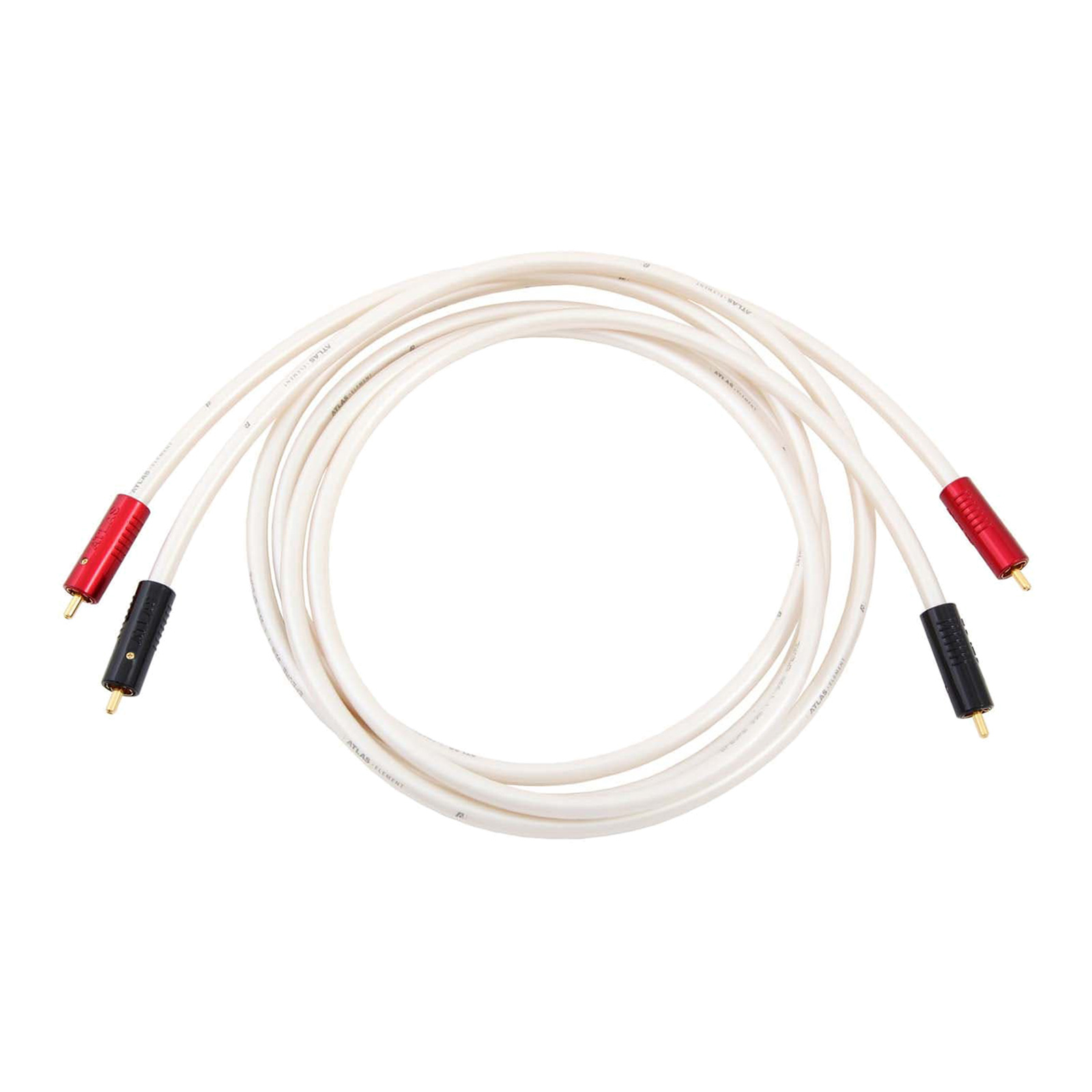

Element Achromatic X RCA is available as a Stereo Pair in the following lengths:

• 0.50 Metre
• 0.75 Metre
• 1.00 Metre
• 1.50 Metre
• 2.00 Metre
• 3.00 Metre
• Custom lengths available - please contact us!

Technology

• Achromatic X RCA Connector - low-mass, non-compression, constant impedance, self-cleaning, solder-free construction plug.
• OCC Copper Conductor - OCC (Ohno Continuous Casting) process was developed by Professor Ohno, from the Chiba Institute of Technology, to manufacture a very high purity single grain copper or silver. There are only a handful of companies in the world manufacturing via this method.
• PEF Dielectric - Foamed Polyethylene. The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
• Coaxial Construction - Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.

Specifications

• Construction: Coaxial
• Material: OCC Copper
• Dielectric: PEF
• Screen: Foil / OFC Braid
• Capacitance: 79.59 pF/m
• Inductance: 1.602 µH/m
• Resistance: 1.344 Ohms/m
• Outside Diameter: 7.0 mm
