Atlas Equator Achromatic 3.5 Speaker Cable (Factory Terminated)

Equator Achromatic 3.5 Speaker Cable, by Atlas Cables

Equator 3.5 builds on the performance of the highly-regarded 2.0 version with improved bass accuracy and control, giving improved dynamics and a greater sense of physical presence. This version’s increased diameter OFC conductors also make it particularly suited to higher power outputs and its use over longer runs.

Atlas Equator 3.5 is a wideband 3.5 mm diameter cable using OFC (Oxygen Free Copper) conductors contained in a high-density PTFE dielectric (insulation layer). The core assemblies are contained in a cotton yarn in order to reduce microphony and the outer sheath is in a pearl white finish.

The latest-generation Achromatic Z-plug is a proprietary low-mass, self-cleaning, precision-crimped (cold-weld) speaker connector fitted as standard. These cables are also available terminated with our cold-weld high quality OFC spades.

Available Lengths

Atlas Equator Achromatic 3.5 is available with Z-Plug or Spade terminations in the following lengths:

• 2.00 Metres
• 3.00 Metres
• 5.00 Metres
• 7.00 Metres
• 10.00 Metres
• Custom lengths available - please call us.

Technology

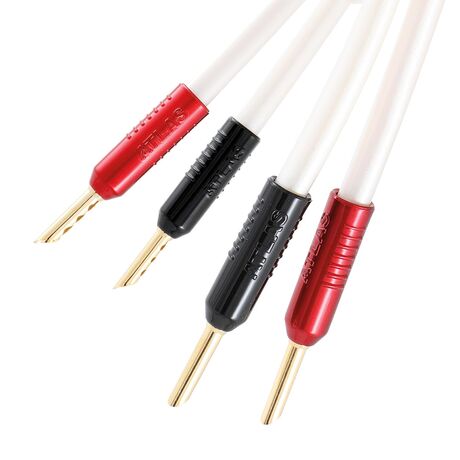

• Achromatic Z-Plug - Atlas proprietary Beryllium Achromatic Z Plug is a low-mass, self-cleaning, solder-free construction speaker plug. These cables can also be supplied with an OFC spade tag option at one or both ends, please specify when ordering.
• OFC Copper Conductors - OFC (Oxygen Free Copper) was developed based on research that sound quality was related to the quality of copper and the processing used during cable manufacture.
• FPE Dieletric - FPE is a low density dielectric material, phase stable at room temperature.
• Twin-Core Construction - A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a protective round PVC sheath.

Specifications

• Construction: Twin-core round
• Material: OFC
• Dielectric: PEF
• Screen: None
• Capacitance: 56.98 pF/m
• Inductance: 0.599 µH/m
• Resistance: 0.0051 Ohms/m
• Outside Diameter: 9.5 mm

More Information

• Equator Achromatic 3.5, by Atlas Cables
