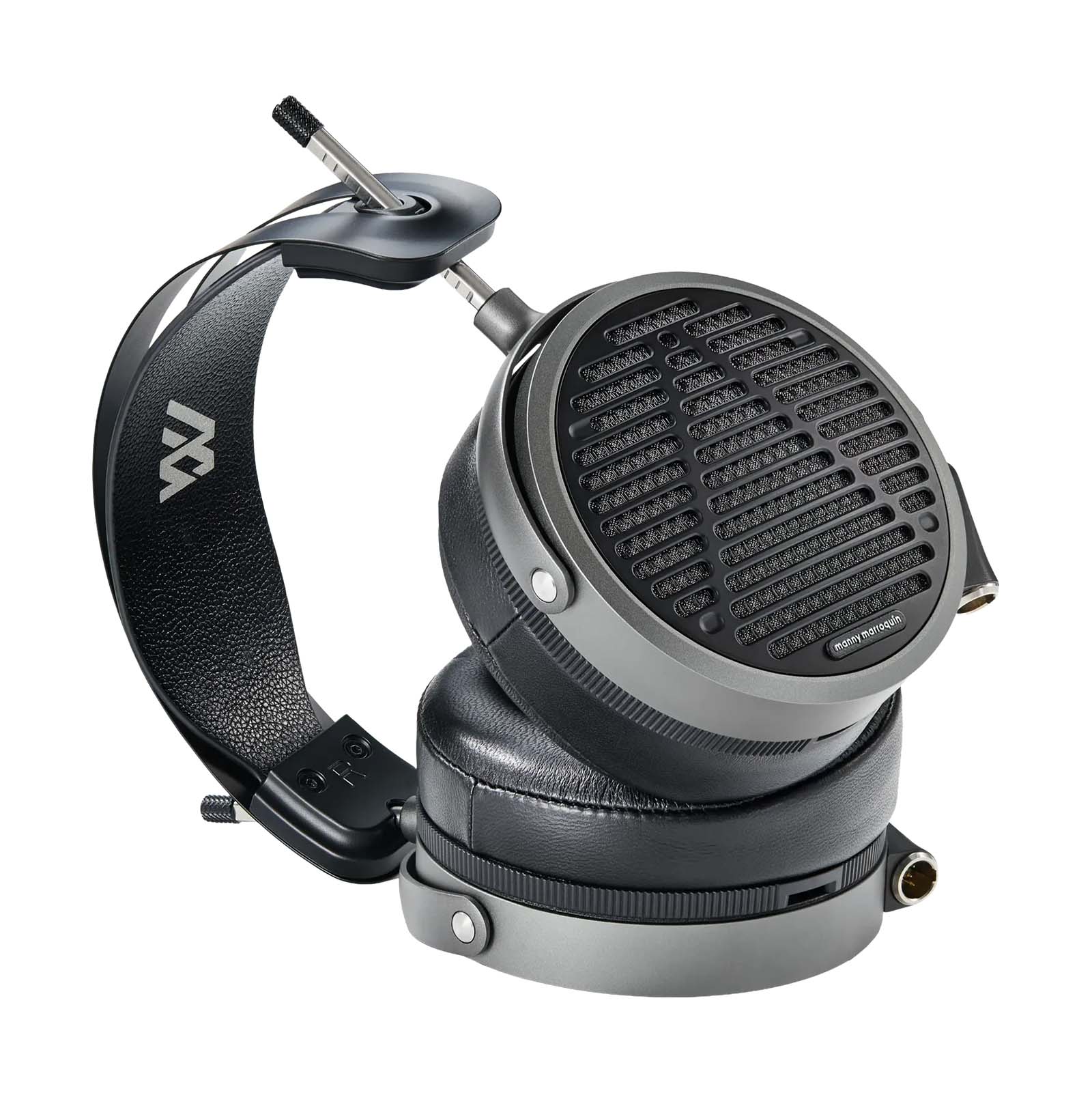

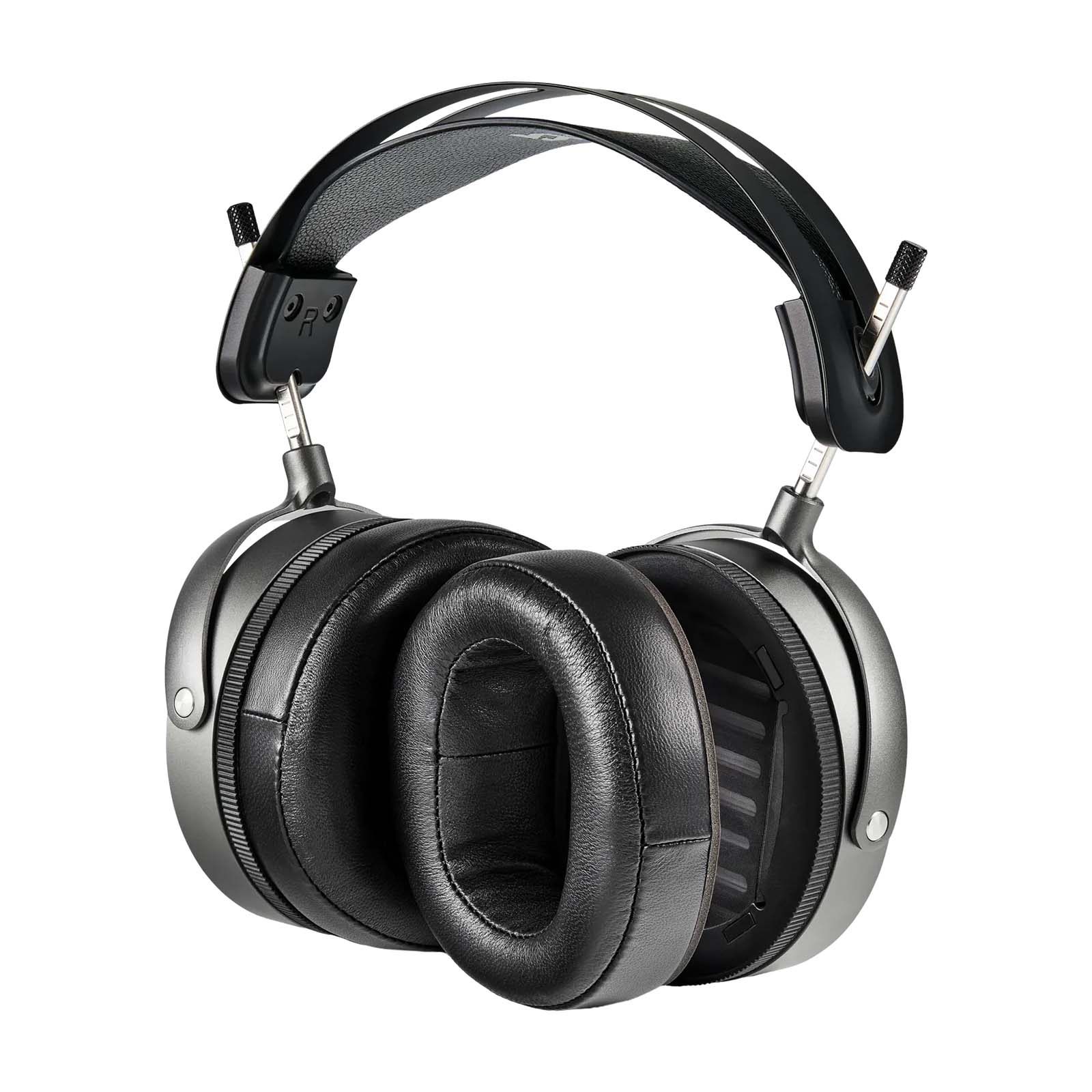

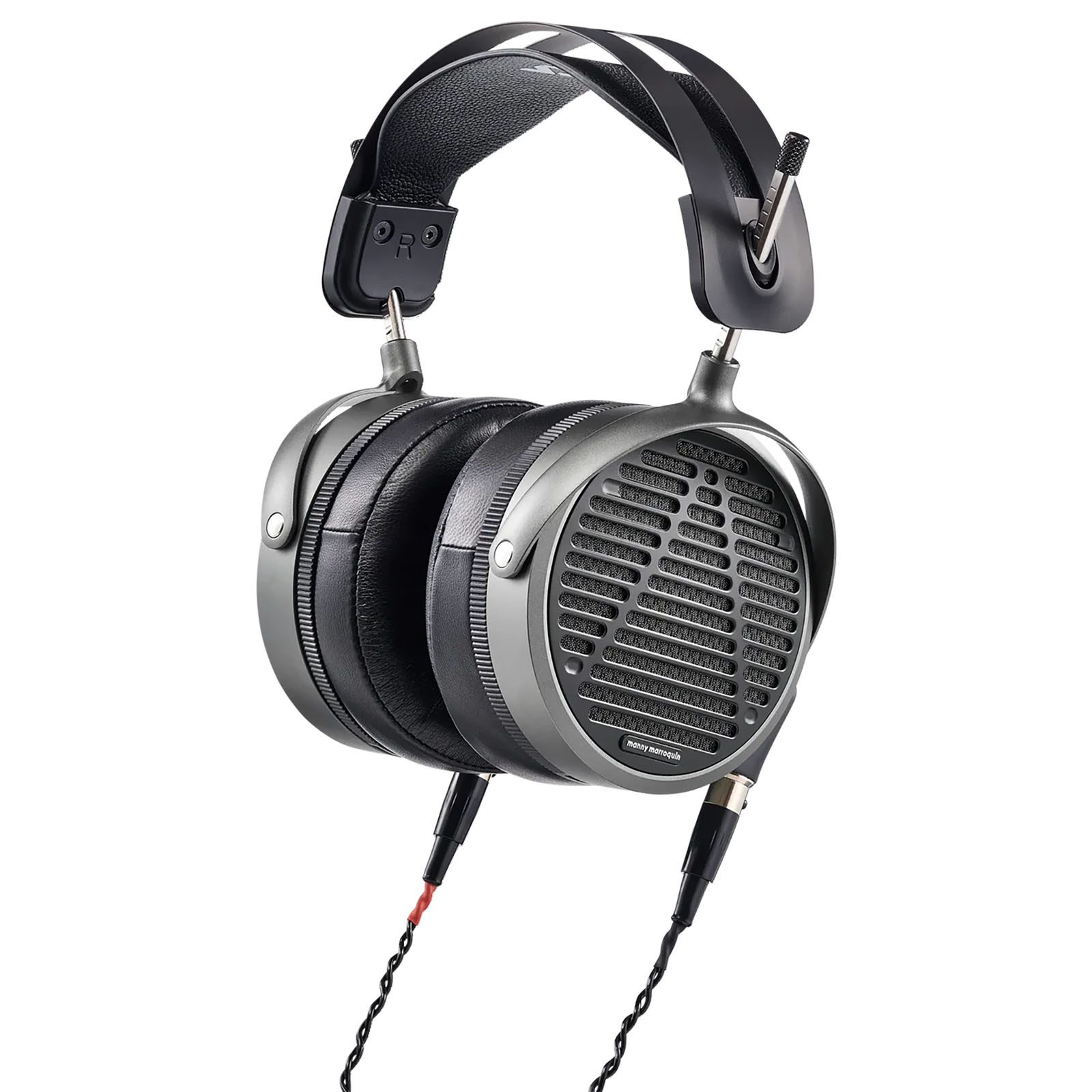

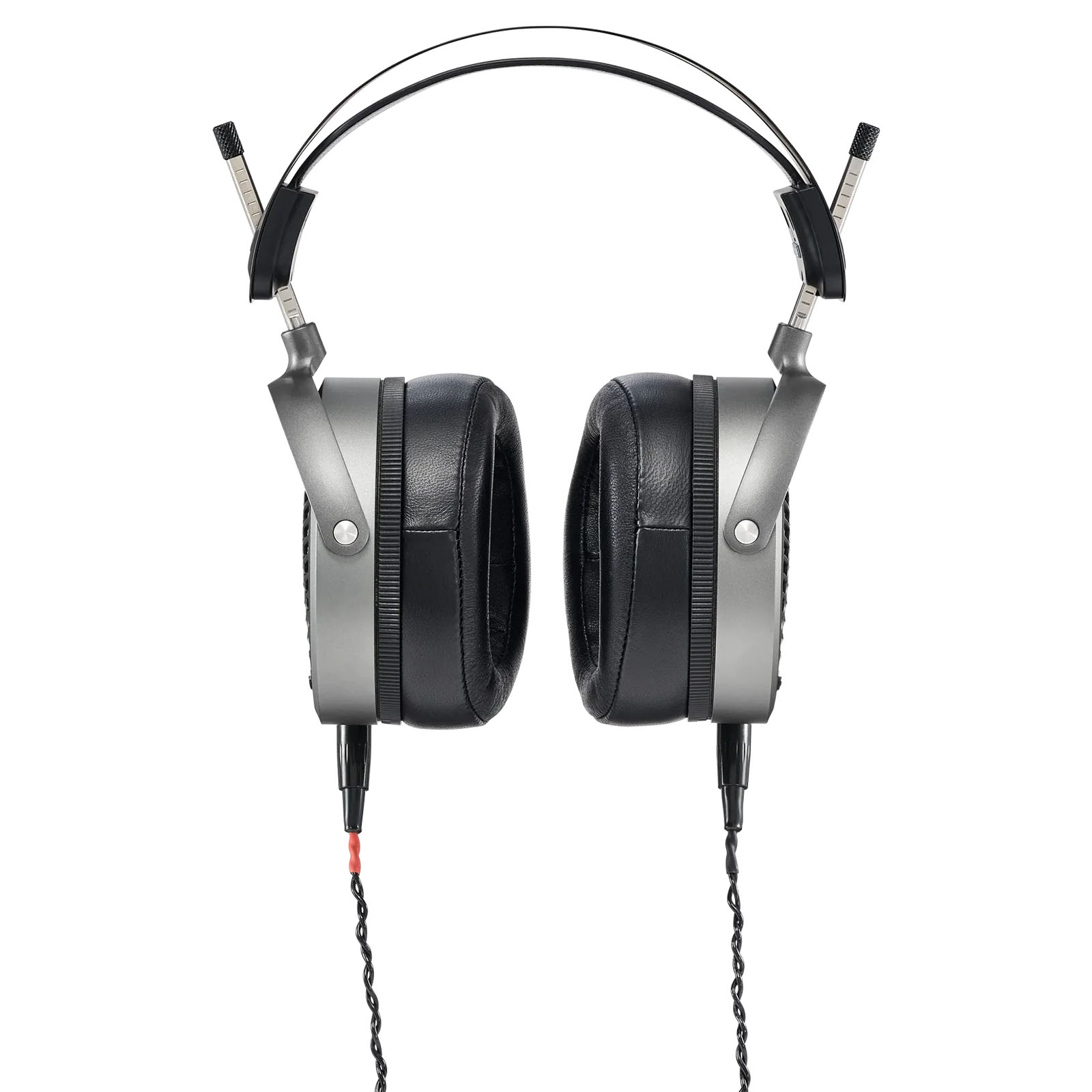

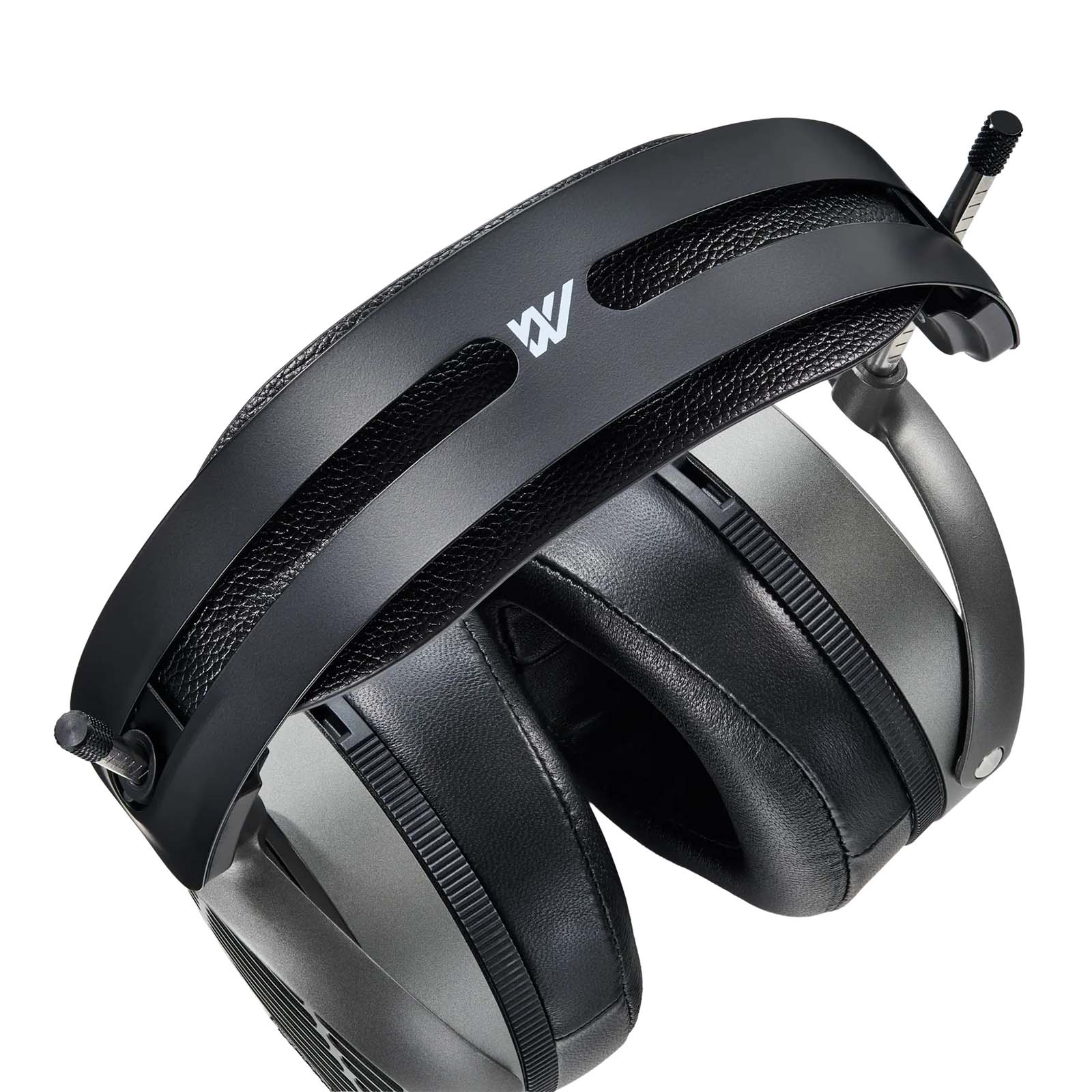

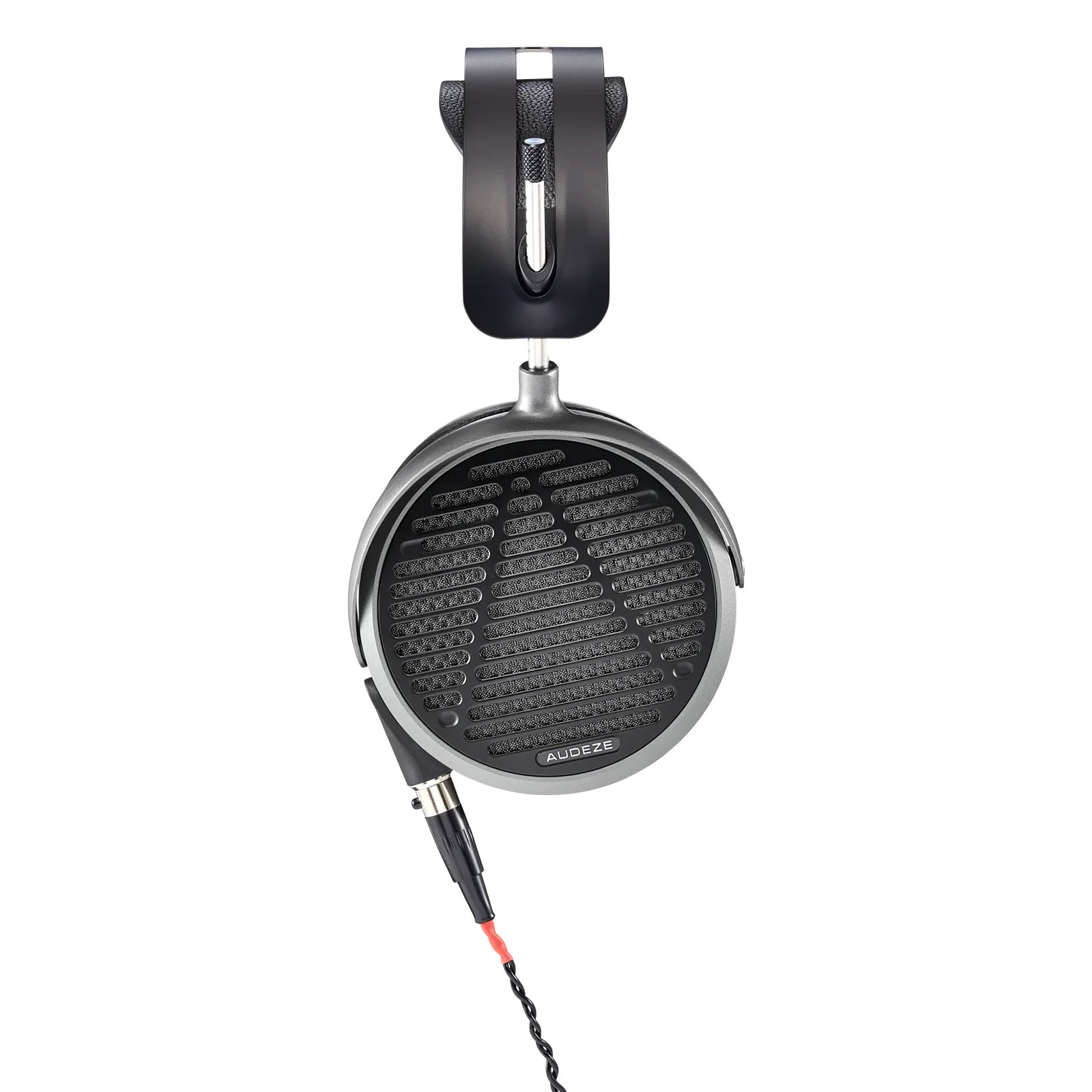

Audeze MM-520 Open-Back Professional Planar Magnetic Headphones

MM-520 Open-Back, Over-Ear Professional Planar Magnetic Headphones, by Audeze.

The Audeze MM-520 is the next evolution in the Manny Marroquin Signature Series, engineered alongside the 18-time Grammy-winning mix engineer for flawless studio translation. Building on the acclaimed MM-500, this open-back headphone introduces Audeze’s revolutionary SLAM™ (Symmetric Linear Acoustic Modulator) technology. By optimizing internal earcup air pressure, SLAM™ delivers unprecedented low-end impact and soundstage transparency while preserving critical midrange neutrality.

At its core, the MM-520 utilizes 90mm planar magnetic drivers featuring Ultra-Thin Uniforce™ diaphragms and Fazor™ phase management. This advanced architecture ensures mastering-grade precision, pinpoint spatial imaging, and ultra-low distortion (under 0.1% THD) across an expansive 5Hz to 50kHz range. The result is a clinical monitoring tool that eliminates low-end guesswork in any environment.

Tailored for both traditional consoles and mobile workflows, its high-sensitivity, 18-ohm design is easily driven by laptops and portable interfaces alike. For marathon sessions, it features upgraded memory foam earpads for premium comfort, complete with a new magnetic attachment system for effortless replacement.

Features

• SLAM™ technology for maximum low-end impact and clarity
• Voiced by Manny Marroquin for flawless mix translation
• 90mm planar drivers for instant transient response
• Fazor™ management ensures ultra-low distortion under 0.1% THD
• Low 18-ohm impedance pairs with laptops, interfaces, or consoles
• Upgraded memory foam ear pads with quick magnetic attachment
• Leather ear pads, spring steel headband, machined aluminium structure
• Ultra-wide 5 Hz – 50 kHz response tracking up to 130 dB
• Manufacturer warranty: 12 months

Specifications

• Style: Over-ear (circumaural), open-back
• Transducer type: Planar Magnetic
• Magnetic structure: Fluxor™ magnet array
• Phase management: Fazor™
• Acoustic management: SLAM™
• Magnet type: Neodymium N50
• Diaphragm type: Ultra-Thin Uniforce™
• Transducer size: 90 mm
• Maximum SPL: >130 dB
• Frequency response: 5 Hz - 50 kHz
• Impedance: 18 ohms
• THD: <0.1 % @ 100 dB SPL, 1 kHz
• Sensitivity: 102 dB / 1 mW (@ Drum Reference Point)
• Minimum power requirement: >100 mW
• Maximum power handling: 5 W RMS
• Weight: 555 g

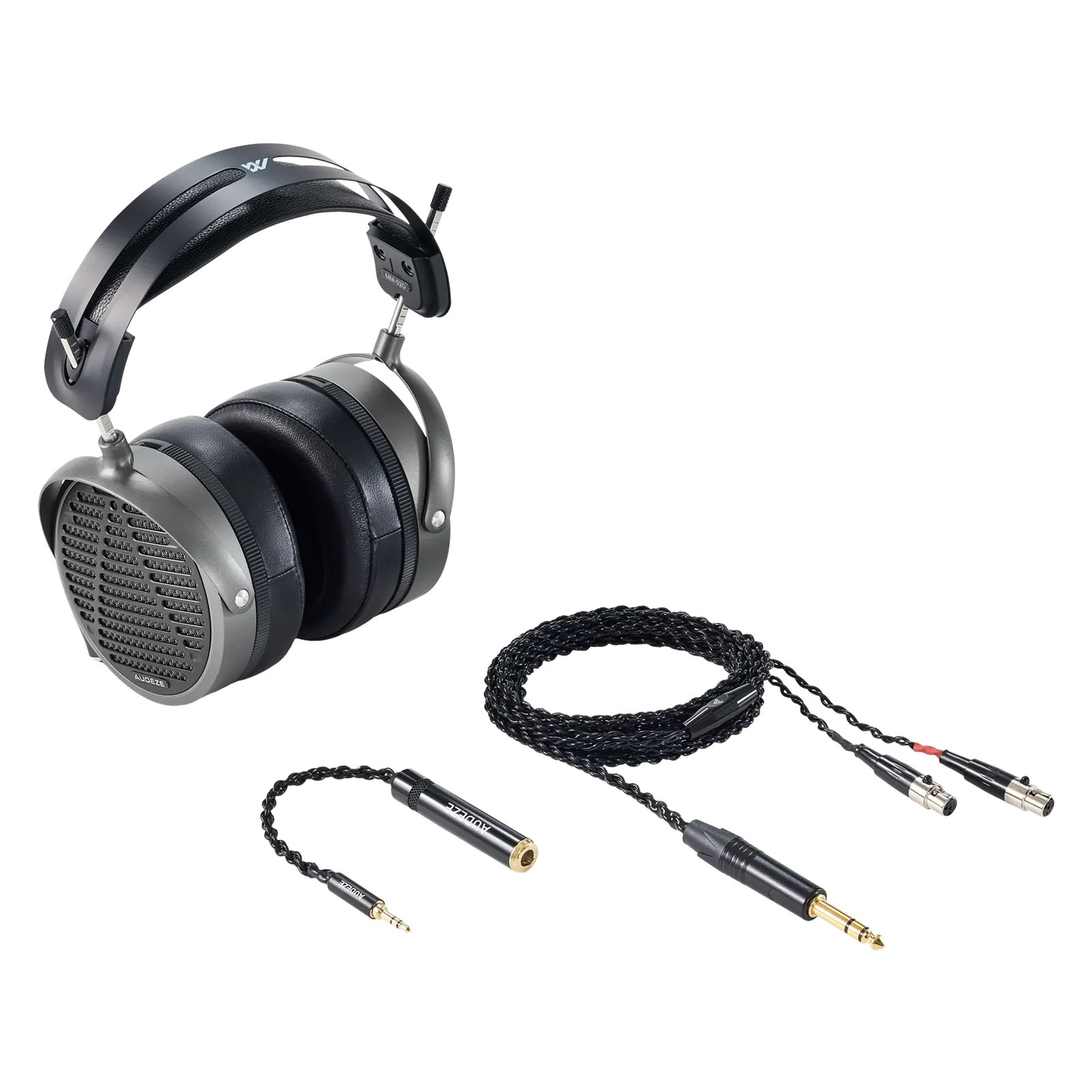

Included

• MM-520 Headphone
• 2.5 m headphone cable
• 3.5 mm to 6.3 mm adaptor
• Standard Travel Case
• MM-Series Soft Carry Bag

More Information

• MM-520 Professional Headphones, by Audeze
