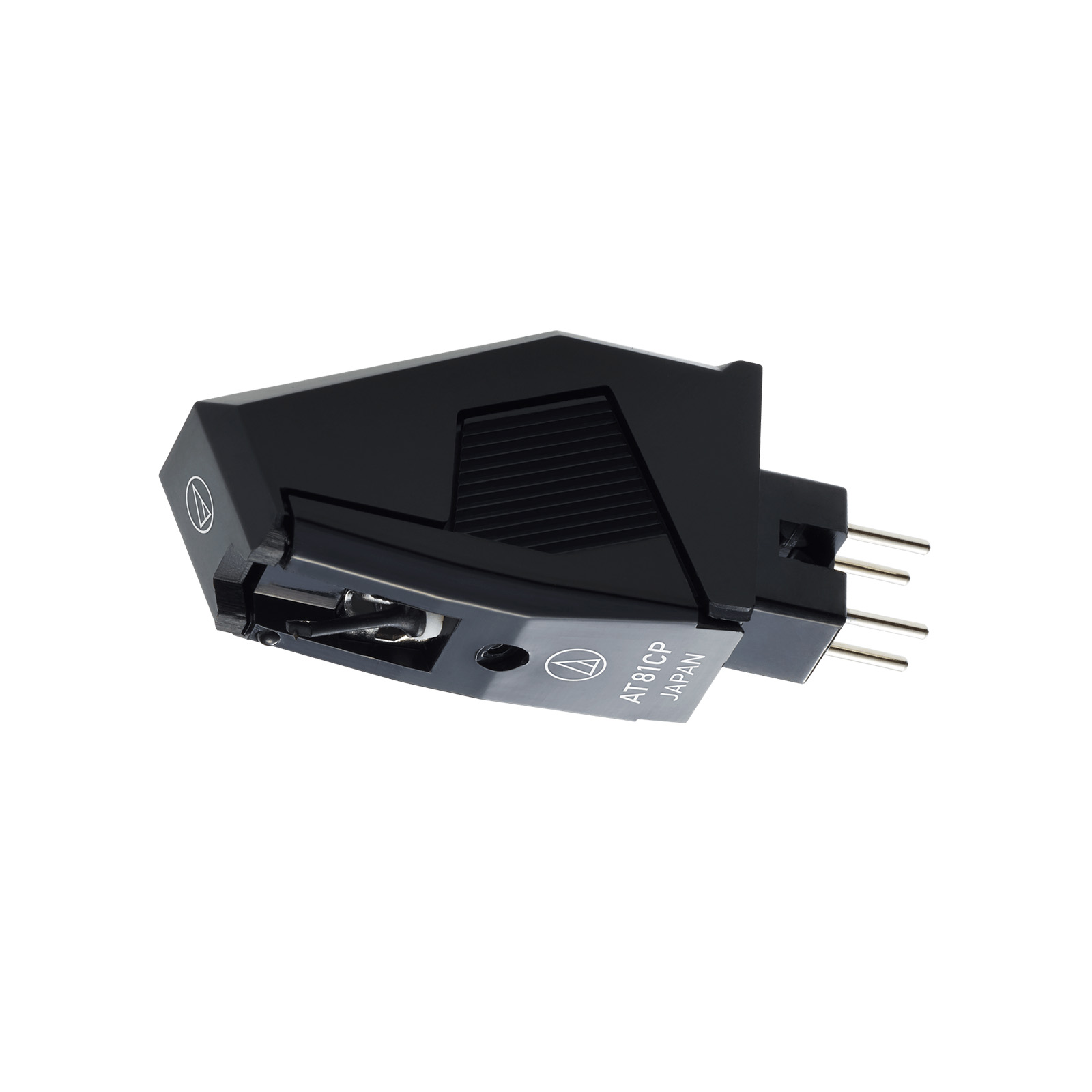

Audio Technica AT81CP P-Mount Stereo Cartridge

The AT81CP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.

Designed specifically for the linear format, the AT81CP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.

Features

• Compatible with all standard P-Mount fitted tonearms.
• Ideal for use with linear tracking turntables, including those by Technics, Hitachi, Pioneer etc.
• Dual Moving Magnet construction.
• Replaceable stylus assembly.

Specifications

• Model: AT81CP
• Type: Dual Magnet
• Mounting: P-Mount
• Frequency Response: 20 - 20,000 Hz
• Channel Separation: 18 dB (1 kHz)
• Output Channel Balance: 2.5 dB (1 kHz)
• Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 4.5 to 5.5g (5.0g standard)

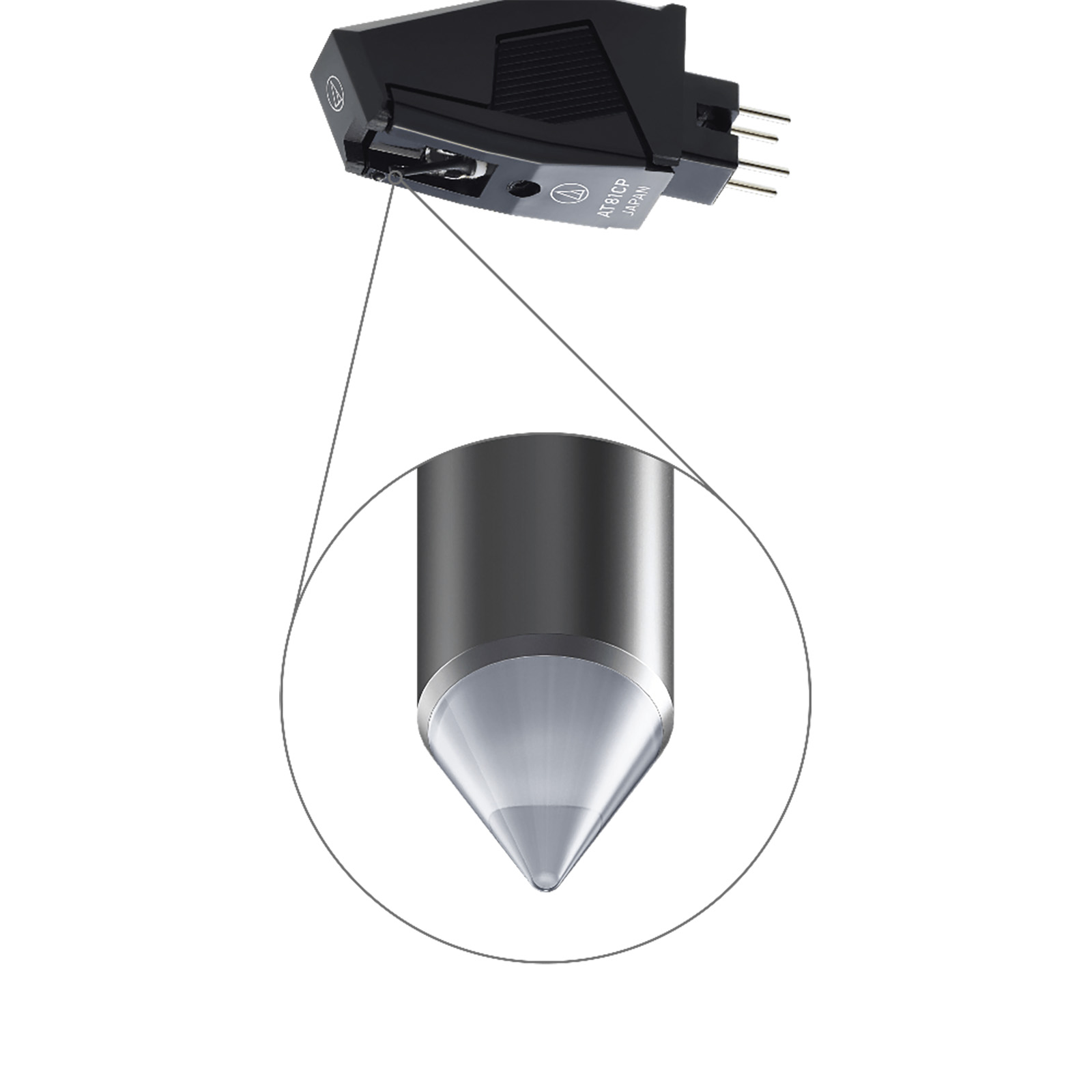

• Stylus Shape: Conical
• Stylus Size: 0.6 mil
• Stylus Construction: Bonded Round Shank
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100-200 pF
• Coil Impedance: 3.3 kΩ (1 kHz)
• Coil Inductance: 400 mH (1 kHz)
• Cantilever: Carbon Fibre Reinforced ABS
• Cartridge Weight: 6.0 g
• Dimensions: 10.0 x 15.3 x 35.1 ( H x W x D mm)
• Replacement Stylus: ATN81CP
