Description

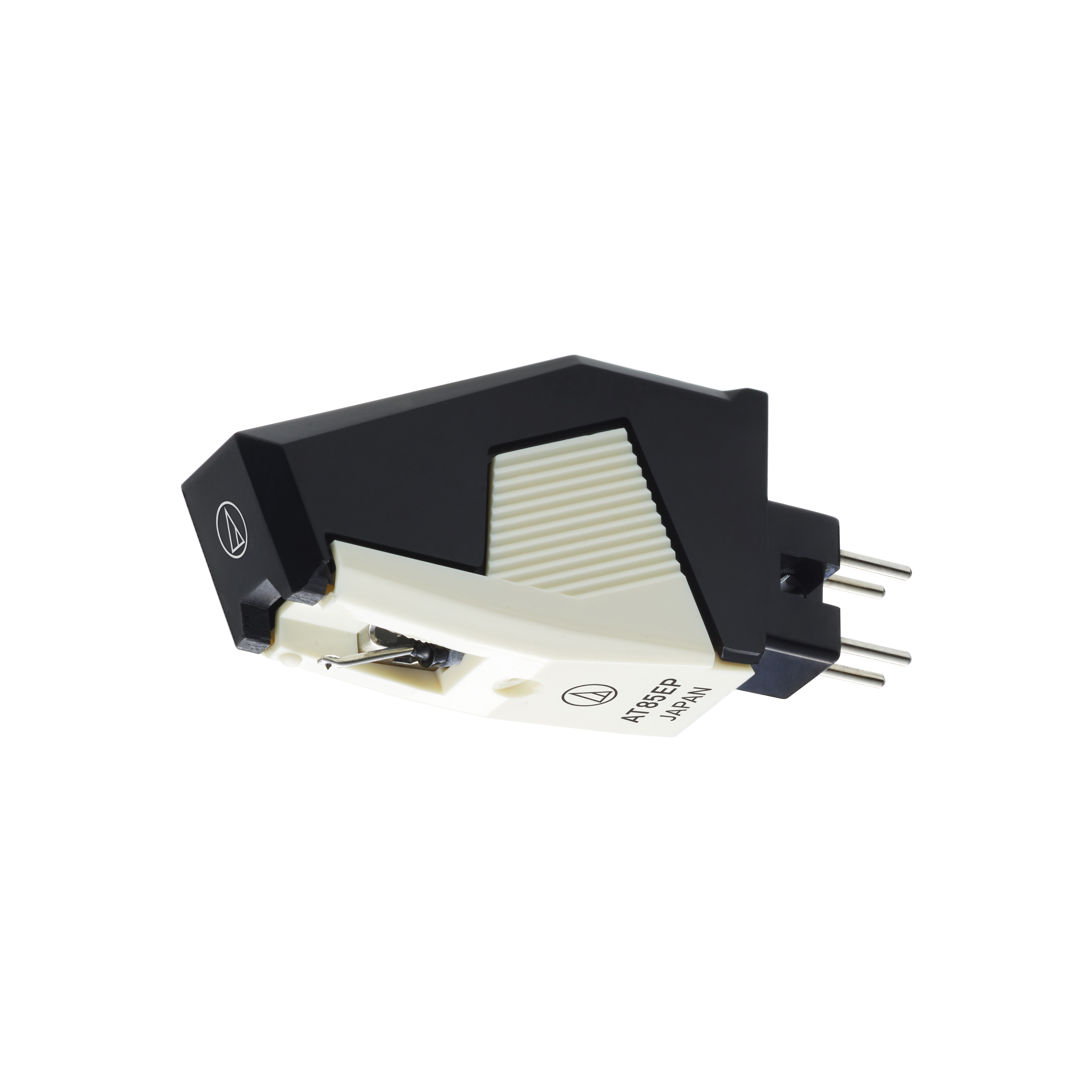

This 0.3 x 0.7 mil elliptical cartridge fits P-mount turntables. It features precision engineering and many other features found in the more expensive Audio-Technica cartridges.
Frequency Response | 20-20,000 Hz |
Channel Separation | 20 (dB at 1 kHz) |
Vertical Tracking Force | 1.0-1.5 g (1.25 g standard) |
Stylus Construction | Bonded round shank |
Recommended Load Impedance | 47,000 ohms |
Output | 3.5 mV (1 kHz, 5 cm/sec.) |
Channel Balance | 2.0 dB (1 kHz) |

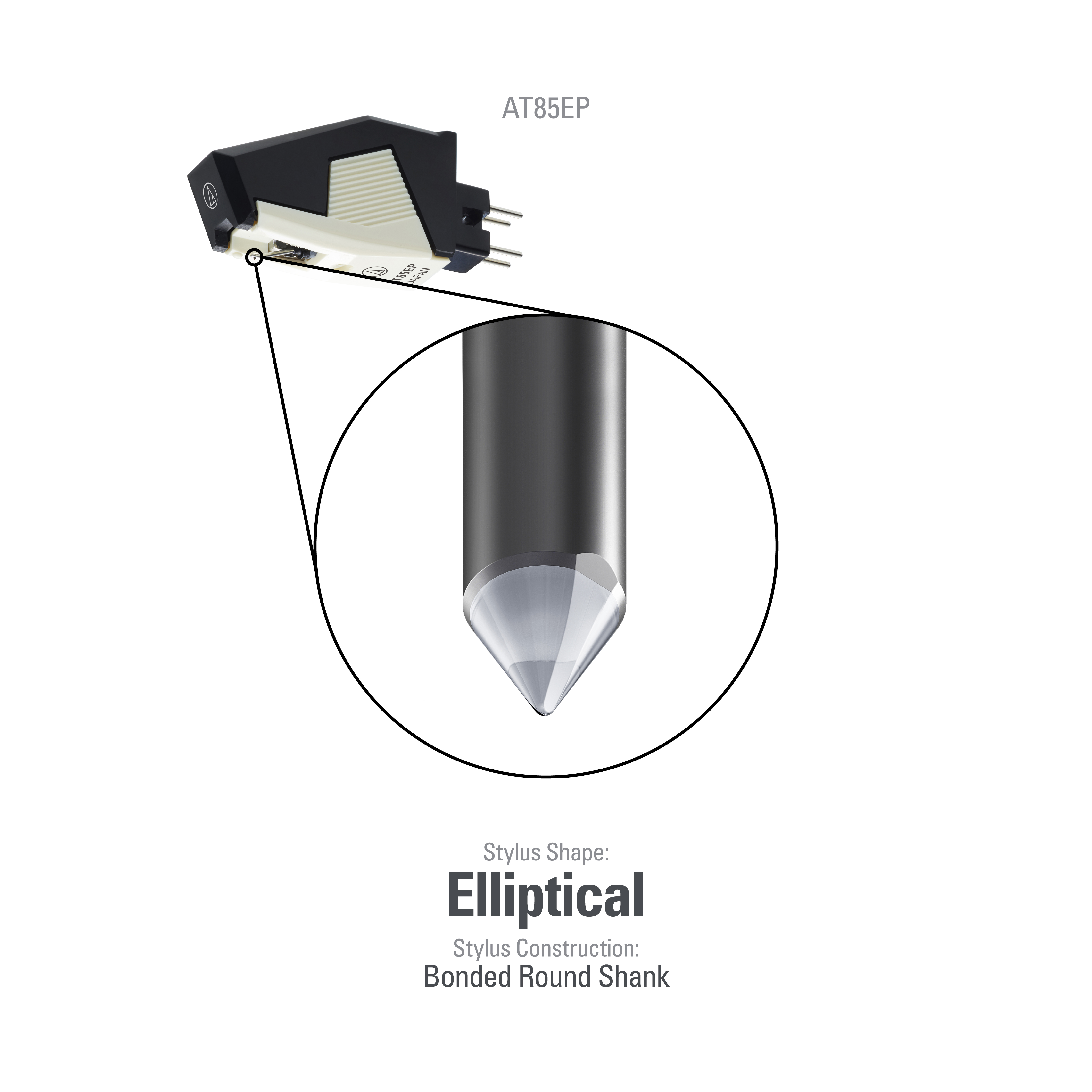

Stylus Shape | 0.3 x 0.7 mil elliptical |
Cantilever | Aluminum pipe |
Mount | P-mount |
Replacement Stylus | ATN85EP |
- Coil impedance: 2.8 k ohms (1 kHz)
- DC resistance: 410 ohms
- Recommended load capacitance: 100 to 200 pF
- Coil inductance: 400 mH (1 kHz)
- Vertical tracking angle: 20°
- Dimensions: 15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
- Weight: 6.0 g (0.21 oz)
