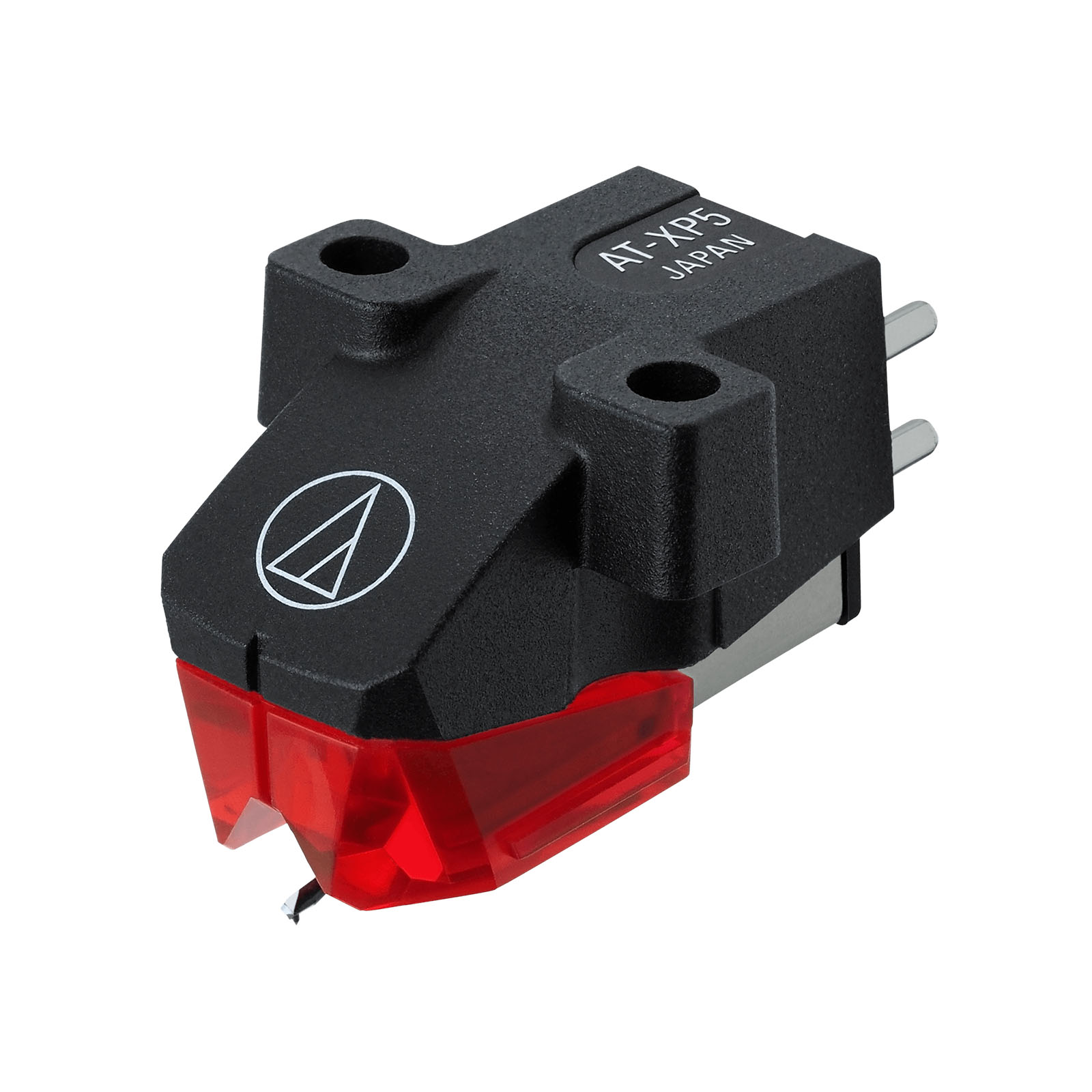

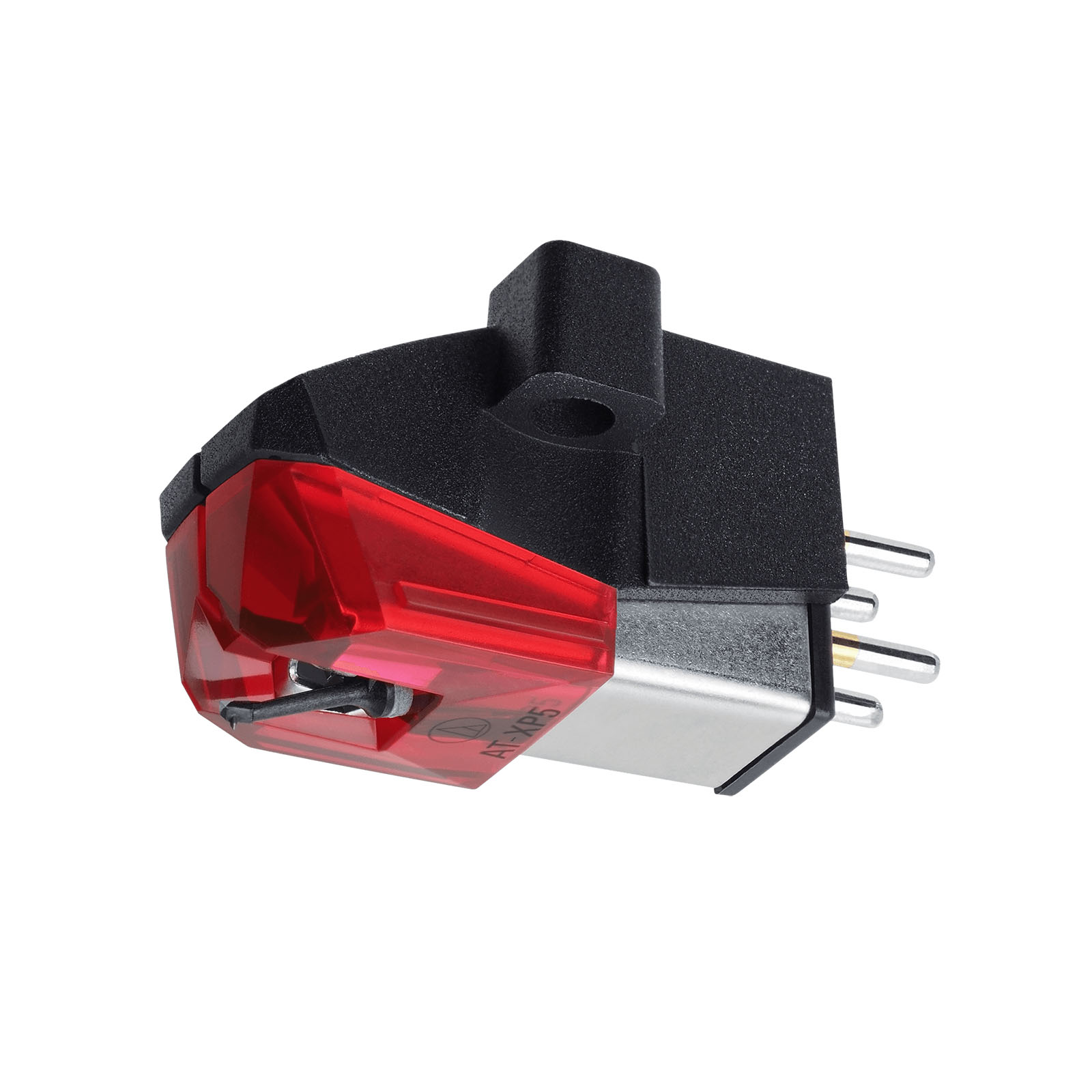

Audio Technica AT-XP5 Stereo DJ Cartridge

The AT-XP5 is specially designed for the needs of DJs.

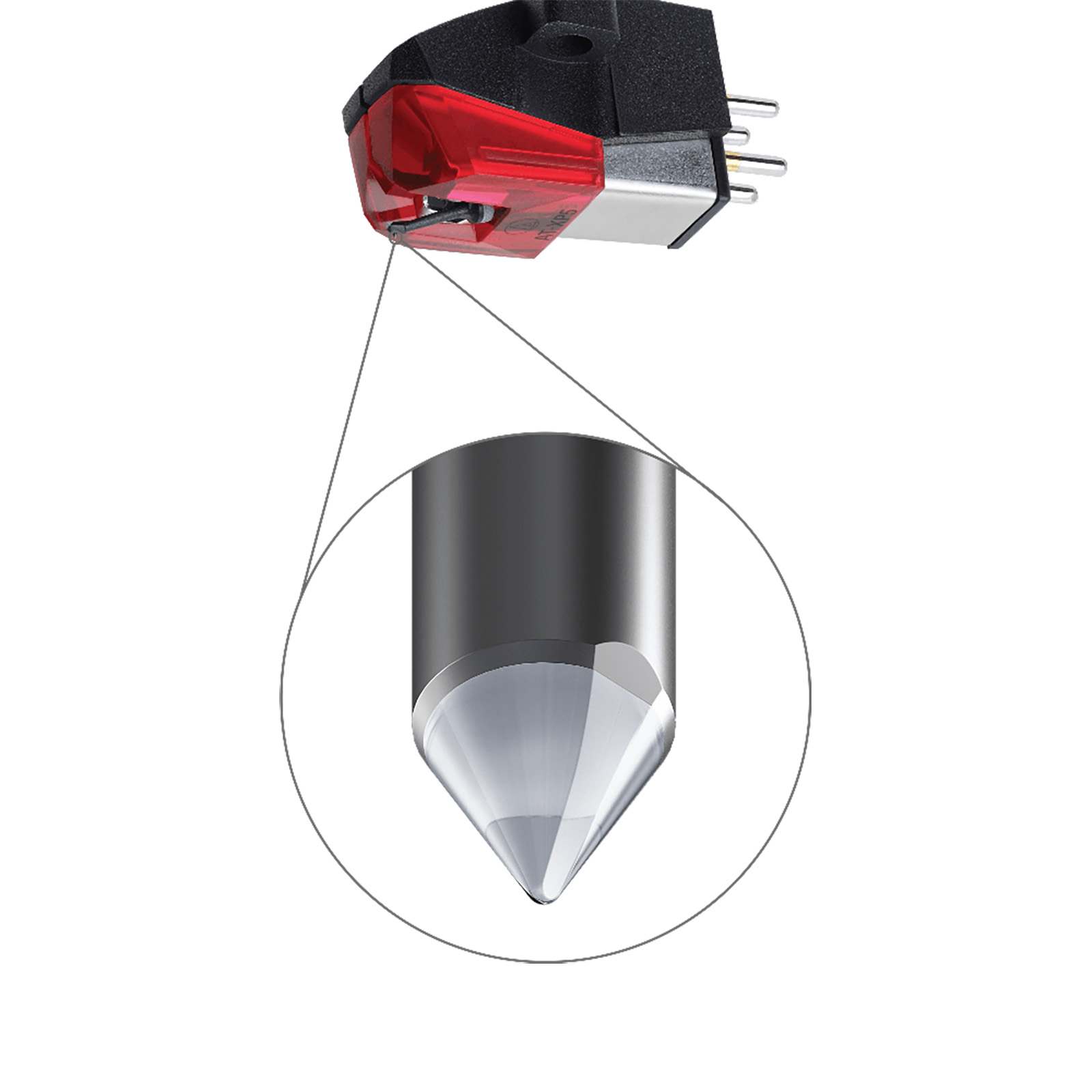

This cartridge features a highly-rigid polyphenylene sulfide (PPS) / glass fibre body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction.

Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip, an essential feature when performing in low-light conditions.

Features

• Durable design for high-quality specialist DJ playback
• Cartridges designed for DJ venue applications for their Hi Fi audio Performance
• VM dual magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus
• Audiophile experience associated with DJ’ing environment with the signal output level and output impedance characteristics adapted to DJ professional mixing boards
• Carbon ABS cantilever
• Great visibility of stylus tip for DJ use
• High-rigidity and Low-resonance cartridge housing
• Durable design for high-quality DJ playback
• Replacement Stylus: ATN-XP5

Specifications

• Model: AT-XP5
• Type: VM Dual Magnet
• Mounting: Standard 1/2-inch
• Frequency Response: 20 - 20,000 Hz
• Channel Separation: 20 dB (1 kHz)
• Output Channel Balance: 2.0 dB (1 kHz)
• Output Voltage: 5.5 mV (@ 1 kHz, 5 cm/sec)
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 2.0 to 4.0g (3.0g standard)
• Stylus Shape: Elliptical
• Stylus Size: 0.3 x 0.7 mil
• Cantilever: Carbon Fibre Reinforced ABS
• Static Compliance: 20 x 10 - 6 cm/dyne
• Dynamic Compliance: 6.0 x 10 - 6 cm/dyne (100 Hz)
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100-200 pF
• Coil Impedance: 3.3 kΩ (1 kHz)
• Coil Inductance: 1 H (1 kHz)
• Cantilever: Carbon Fibre Reinforced ABS
• Cartridge Weight: 6.2 g
• Dimensions: 10.0 x 15.3 x 35.1 ( H x W x D mm)
• Replacement Stylus: ATN-XP5
• Accessories Included: 2 x 11mm screws, 2 x 8mm screws, 2 x washers, 2 x round nuts, 1 x non-magnetic screwdriver
