Audio Technica VM540ML Dual Moving Magnet Stereo Cartridge

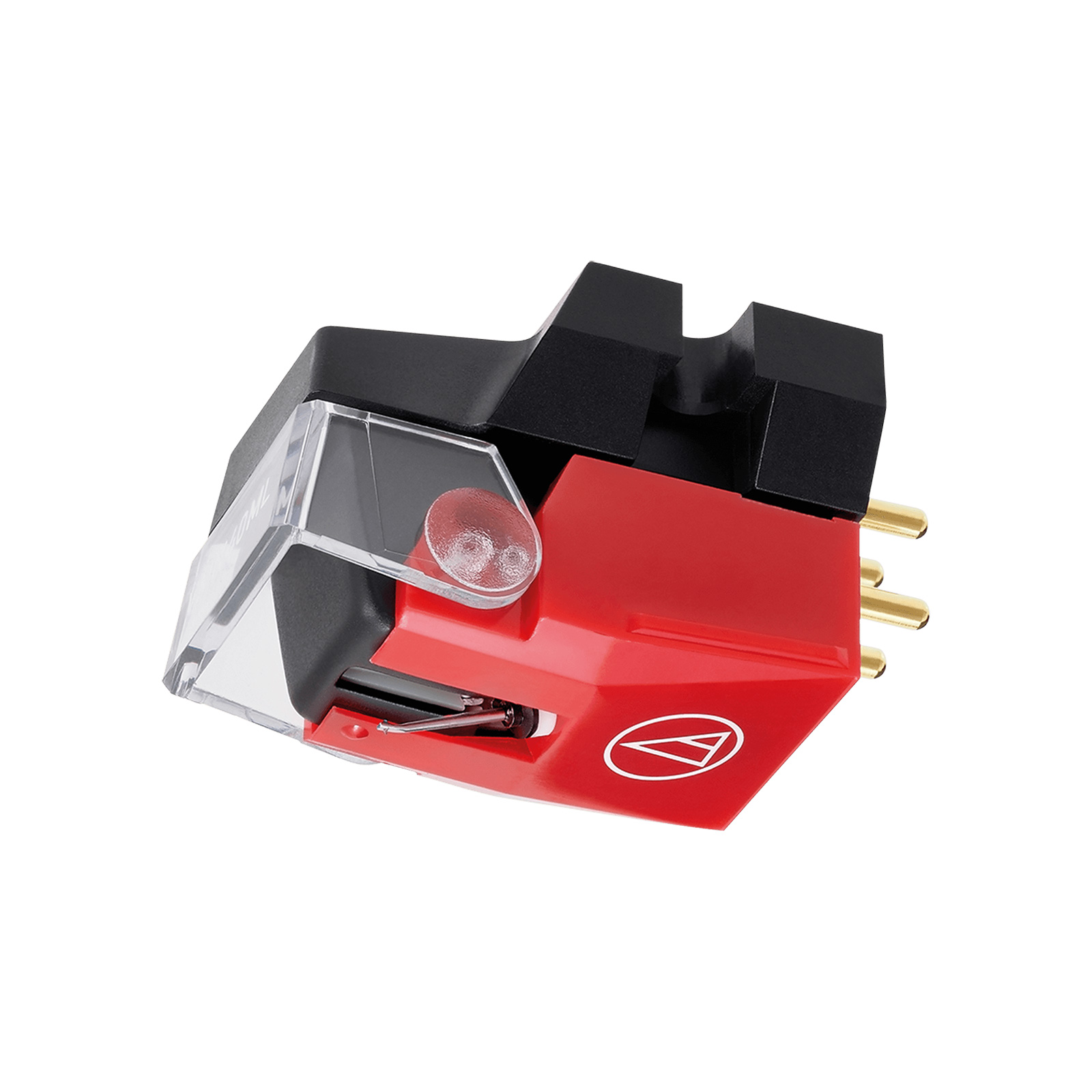

VM540ML Dual Moving Magnet Stereo Cartridge, by Audio Technica.

Standard model with a Microlinear stylus. Distortion is low even on the inner circumference of a record because the curvature radius of the stylus tip does not alter even if the stylus becomes worn.

Instead of using a single, large magnet, the two magnets are arranged in a V-shape. The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

Standard cartridge body fitted with the para-toroidal coils, centre shield plate, and 6N-OFC coil wire which is the same as 700 series.

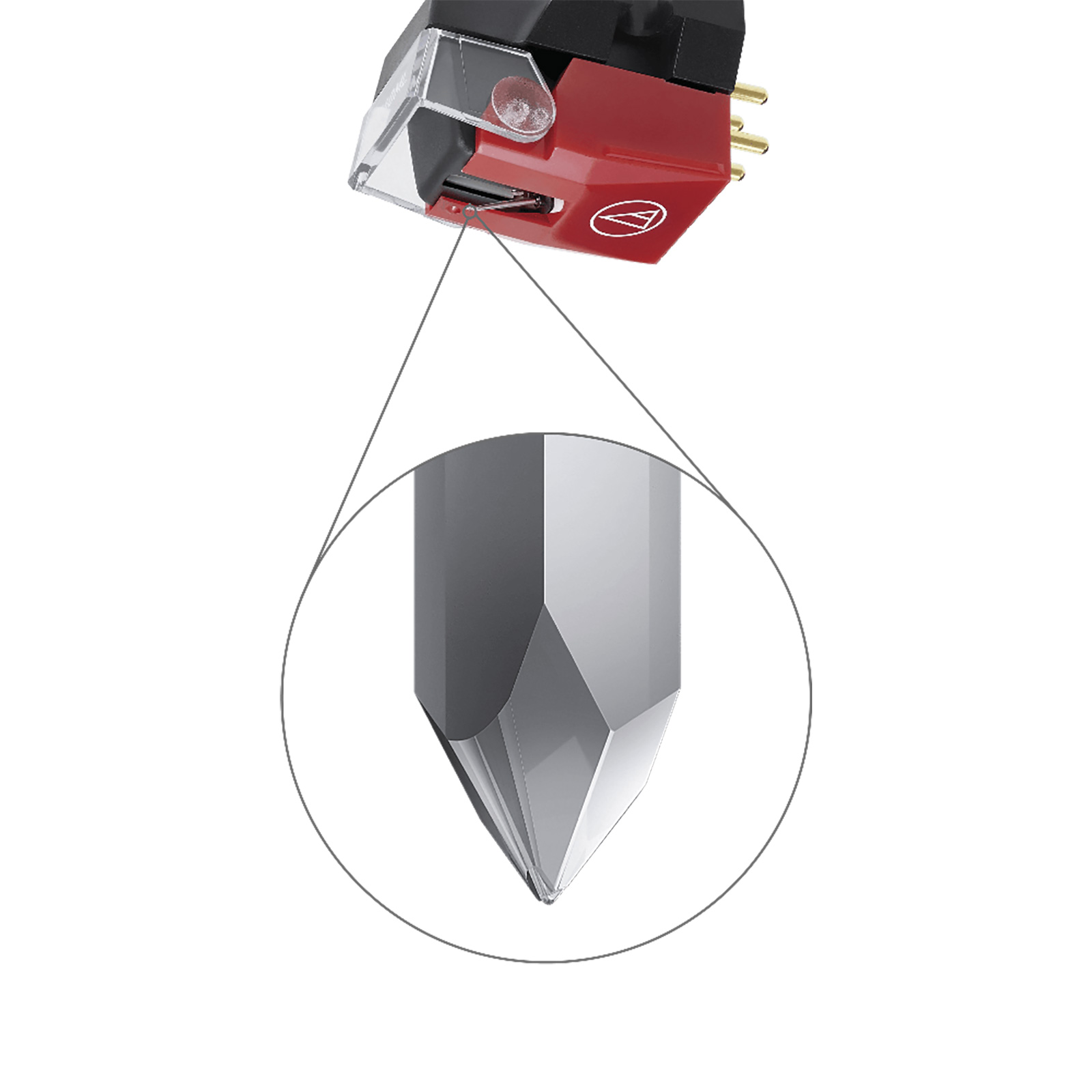

Microlinear profile diamond stylus offers high frequency response with less wear and distortion than elliptical or conventional linear contact styli.

Features

• Aluminium cantilever.
• Para-toroidal coils improve generating efficiency.
• Centre shield plate between the left and right channels reduces crosstalk.
• Durable low resonance polymer housing.

Specifications

• Frequency Response: 20 - 27,000 Hz
• Channel Separation: 28 dB (1 kHz)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force: 1.8 to 2.2 g (2.0 g standard)
• Stylus Construction: Nude Square Shank
• Recommended Load Impedance: 47,000 Ω
• Coil Impedance: 2,700 Ω (1 kHz)
• Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
• Output Channel Balance: 1.0 dB (1 kHz)
• Stylus Shape: Microlinear
• Cantilever: Aluminium Tapered Pipe
• Static Compliance: 40 x 10-6 cm/dyne
• Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
• Mounting: 1/2-in centres
• Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Recommended Load Capacitance: 100 – 200 pF
• Replacement Stylus: VMN40ML
• Stylus Size: 0.12 x 2.2 mil
• Type: VM Type
• Weight: 6.4 g

Included

• VM540ML Cartridge
• Cartridge Installation Screws (5 mm x 2 / 10 mm x 2)
• Washer x 2
• Hexagon Nut x 2
• Non-Magnetic Screwdriver x 1
• Brush x 1
• Lead Wire Set x 1

More Information

• VM540ML, by Audio Technica
