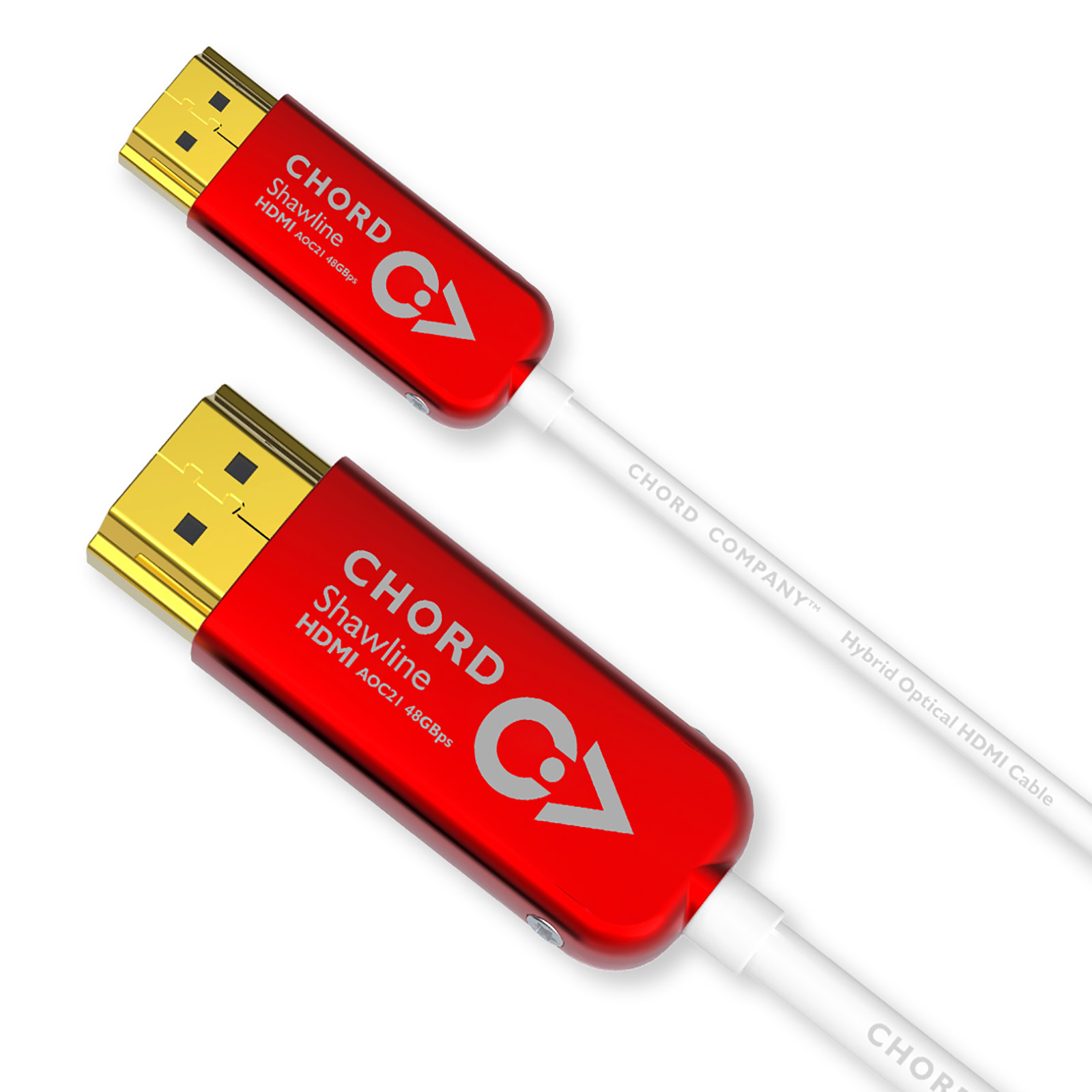

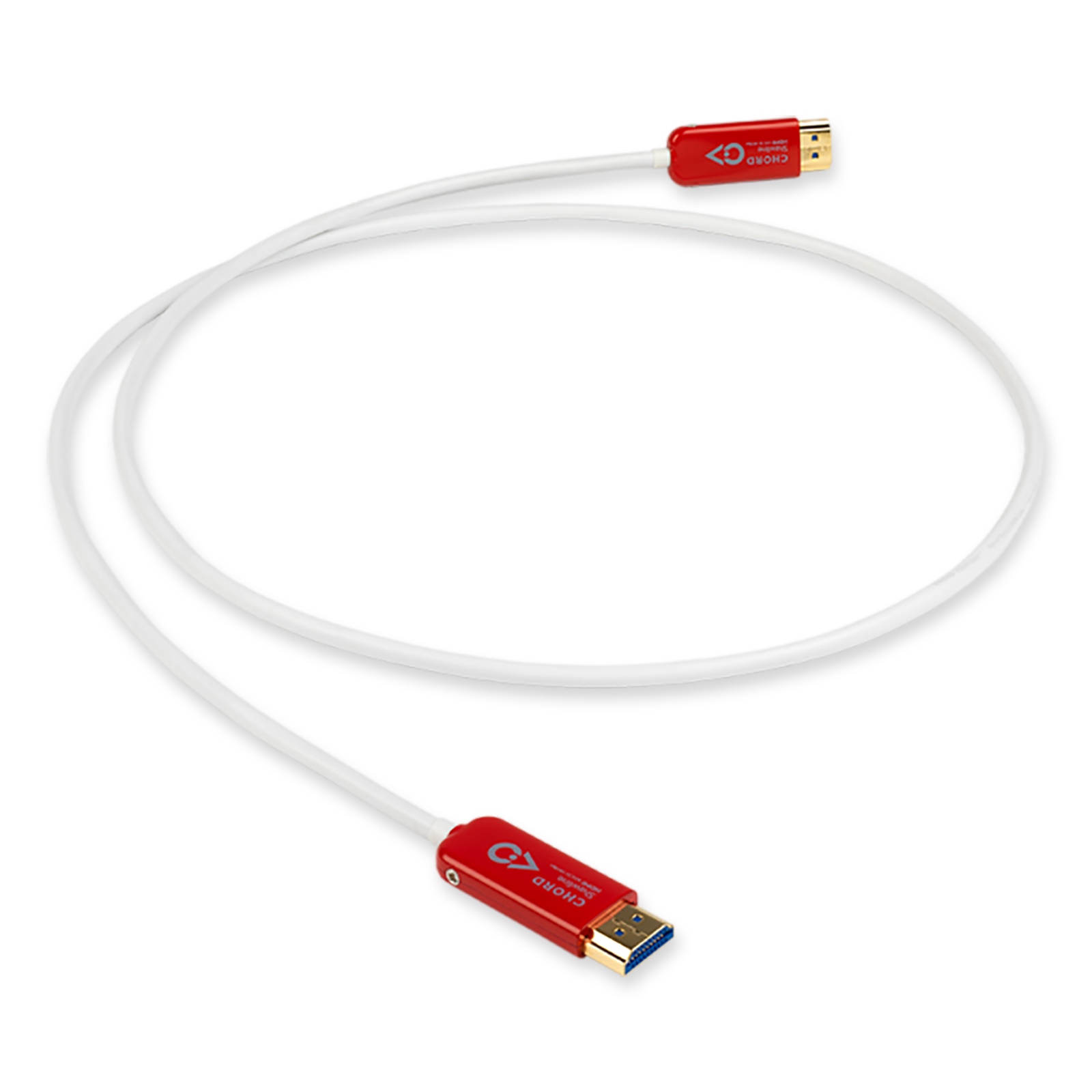

Chord Company Shawline HDMI AOC Active Optical Cable

Shawline HDMI AOC Active Optical Cable, by The Chord Company.

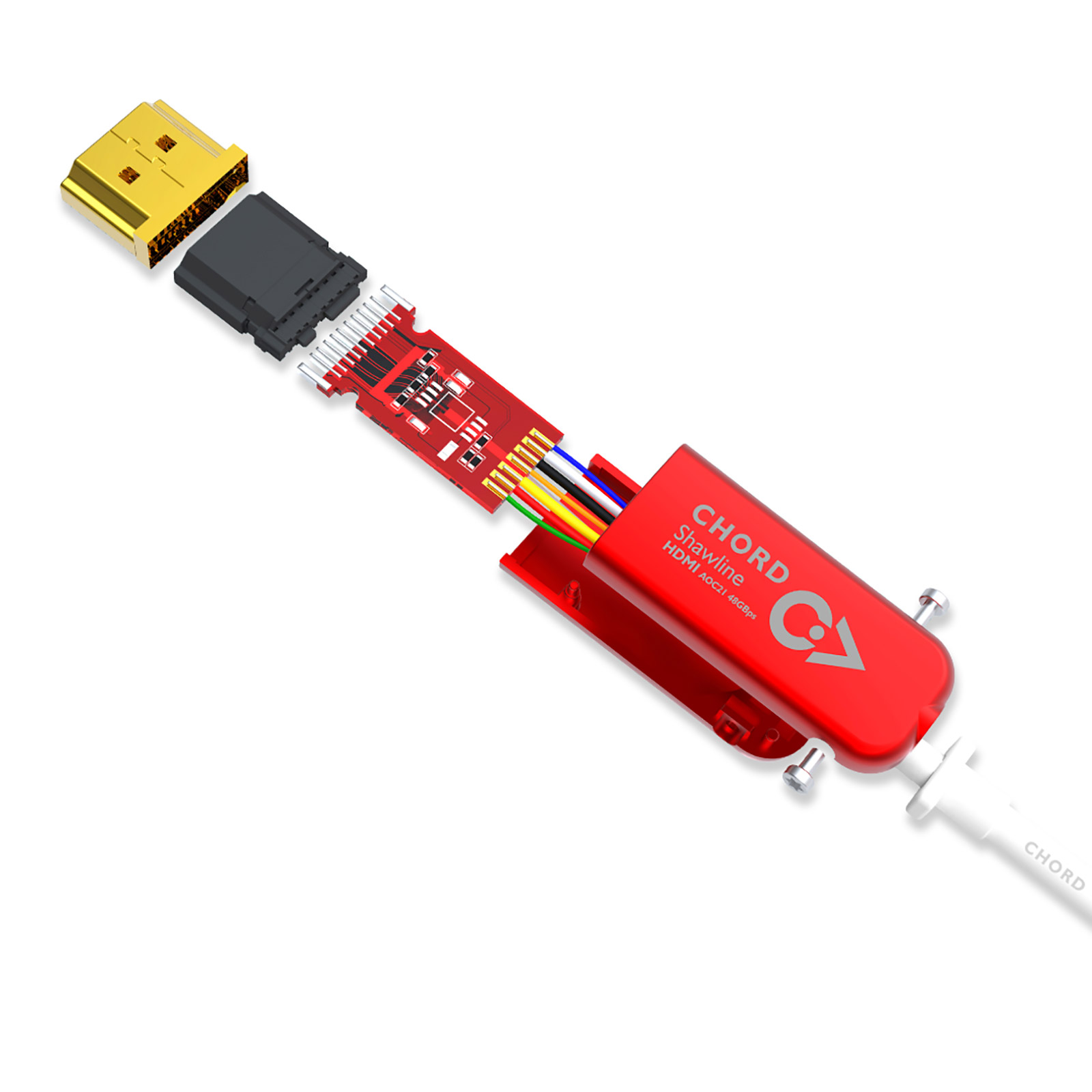

Shawline HDMI AOC uses a high-quality chipset at both ends of the cable and the highest OM3 grade (over 10 Gigabit bandwidth) glass fibres rather than the typical OM2 (up to 1 Gigabit bandwidth). Alongside the full 4K/8K HDR picture quality, this premium high-speed cable benefits from improved audio performance and is heavily shielded against HF noise.

Specifications

• Brand: The Chord Company
• Range: Shawline
• Bandwidth: UHS 48 GBps+
• Resolution: 8 K / 60 Hz or 4 K / 120 Hz
• Dynamic Range: Dynamic HDR
• Operating Distance: 20+ m
• Primary Conductors: 4 fibre + 7 wire
• Insulation: Foam PE
• Shielding: Dual AL foil
• Cable Jacket: PVC
• HDMI Connector Shell: Gold-plated copper
• HDMI Connector Pins: 19-pin gold-plated copper
• Termination: Hand soldering + fabrication
• HDMI Connector Backshell: Zinc Alloy
• Cable Diameter: 4.8 mm

Length Options

Chord Shawline HDMI AOC Cable is available starting at £208.33 for 1.00 Metre (ex-VAT).

Lengths of 1.00 - 20.00 metres may be ordered directly using the purchase options above. For all other lengths please contact us to discuss your requirements.

Termination Options

Chord Shawline HDMI AOC Cable can be supplied with the following connection options:

• HDMI - HDMI

More Information

• Chord Shawline HDMI AOC Cable
