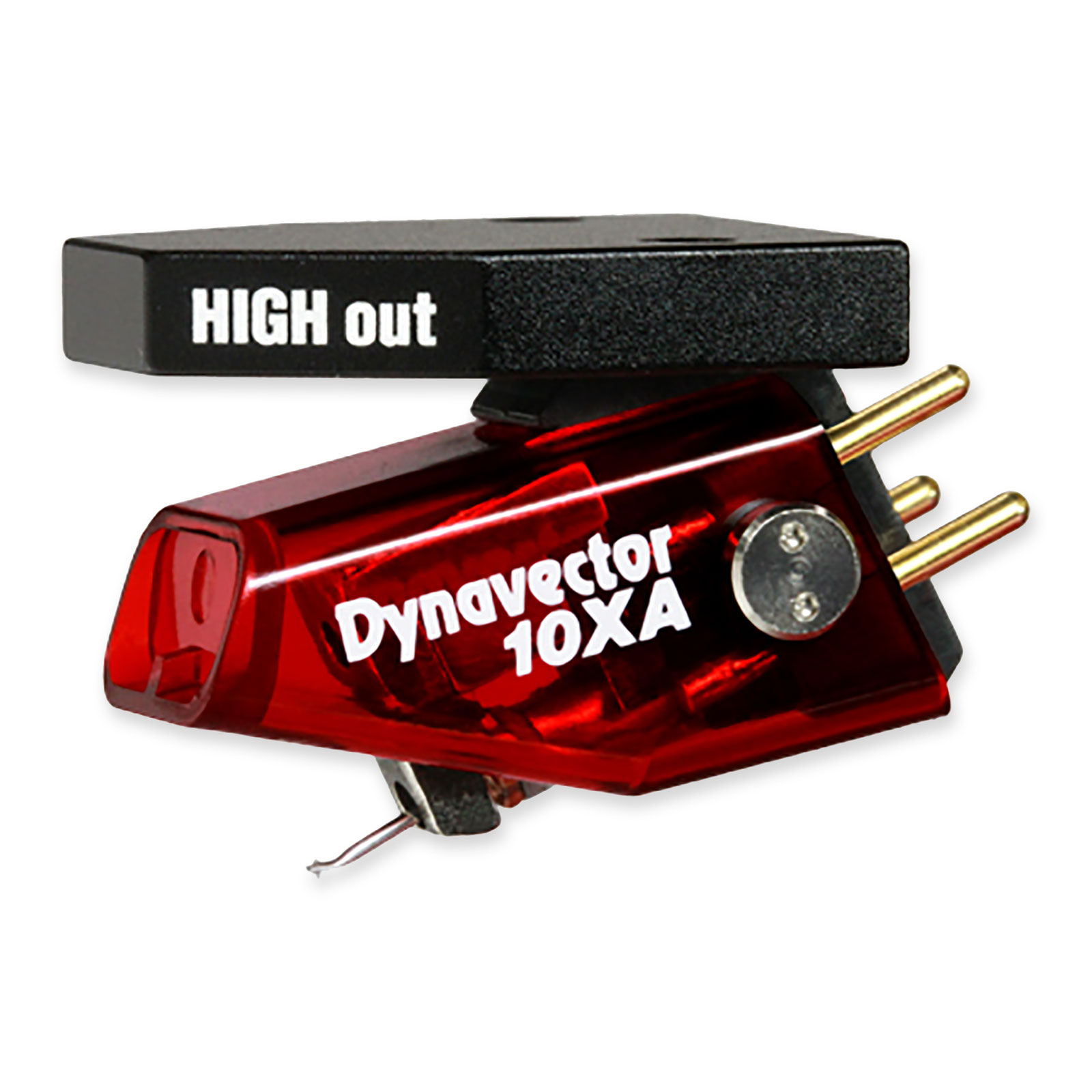

Dynavector 10XA Moving Coil Cartridge (High / Low)

DV 10XA Moving Coil Phono Cartridge, by Dynavector.

Released in June 2025, the 10X series reaches new heights of performance with a newly developed magnetic circuit that incorporates Dynavector's proprietary Special Magnetic Annealing technology.

This new 10XA model delivers exceptionally smooth and articulate analog playback, offering a listening experience that goes far beyond what is expected from an entry-level cartridge.

The magnetic circuit, which is the core of an MC cartridge, uses pure iron that has stable magnetic properties with minimal distortion. Furthermore, by performing special annealing that focuses on optimizing the magnetic annealing process such as annealing temperature, environment, heating duration, and heating / cooling rates, we have succeeded in delivering expansive resonant sound without distortion and unrivalled resolution.

To meet the demands of today's wide range analog playback systems, the 10XA features a Shibata Type III stylus, known for its superior high-frequency response. The cantilever is made from lightweight, rigid aluminium pipe. This improves groove tracking significantly, enabling higher resolution playback.

10XA-H High Output

Dynavector's unique coil winding technology made high output MC cartridges possible. By winding an ultra-fine wire many times around the coil bobbin, the phono cartridge can retain a healthy 2.8 mV output, eliminating the need for a head amplifier or a step-up transformer.

It retains the sonic advantages of an MC cartridge while offering the ease of use of an MM cartridge. Recommended load impedance is 1,000 Ω or higher. Connection to a PHONO input in MM position (47 KΩ load) is also possible.

10XA-L Low Output

The low-output 10XA-L model offers an output voltage of 0.5 mV, allowing excellent compatibility with a wide range of step-up transformers and head amplifiers.

This model lets you fully experience the distinct qualities of MC playback. Recommended load impedance is 100 Ω or higher.

Dynavector Exchange Scheme

For those with ANY existing Dynavector 10X series cartridge, an exchange scheme is available which offers a new cartridge at a reduced price, upon return of your current model.

If you would like to take advantage of this cartridge exchange scheme, please contact us prior to purchase.

Features

• Latest version of the 10X series MC cartridge.
• Special annealing magnetic circuit.
• Nude diamond Shibata III line contact stylus.
• Hardened cantilever material.
• Powerful neodymium magnet.
• Aluminium head block.
• Available in High or Low output versions.

Specifications

• Type: High / Low output moving coil cartridge, with flux damper & softened magnetism.
• Output Voltage (High): 2.8 mV @ 1 kHz, 5 cm/sec
• Output Voltage (Low): 0.5 mV @ 1 kHz, 5 cm/sec
• Channel Separation: 25 dB @ 1 kHz
• Channel Balance: 1.0 dB @ 1 kHz
• Frequency Response: 20 - 20,000 Hz（±2 dB）
• Compliance: 12 mm/N
• Tracking Force: 1.8 - 2.2 g
• Impedance (High): 150 Ohms
• Impedance (Low): 32 Ohms
• Recommended Load Impedance (High): > 1000 Ohms
• Recommended Load Impedance (Low): > 100 Ohms
• Cantilever: 6.0 mm length, hardened aluminium pipe
• Stylus Tip: Nude Diamond Shibata III Line Contact
• Weight: 7.5 g
