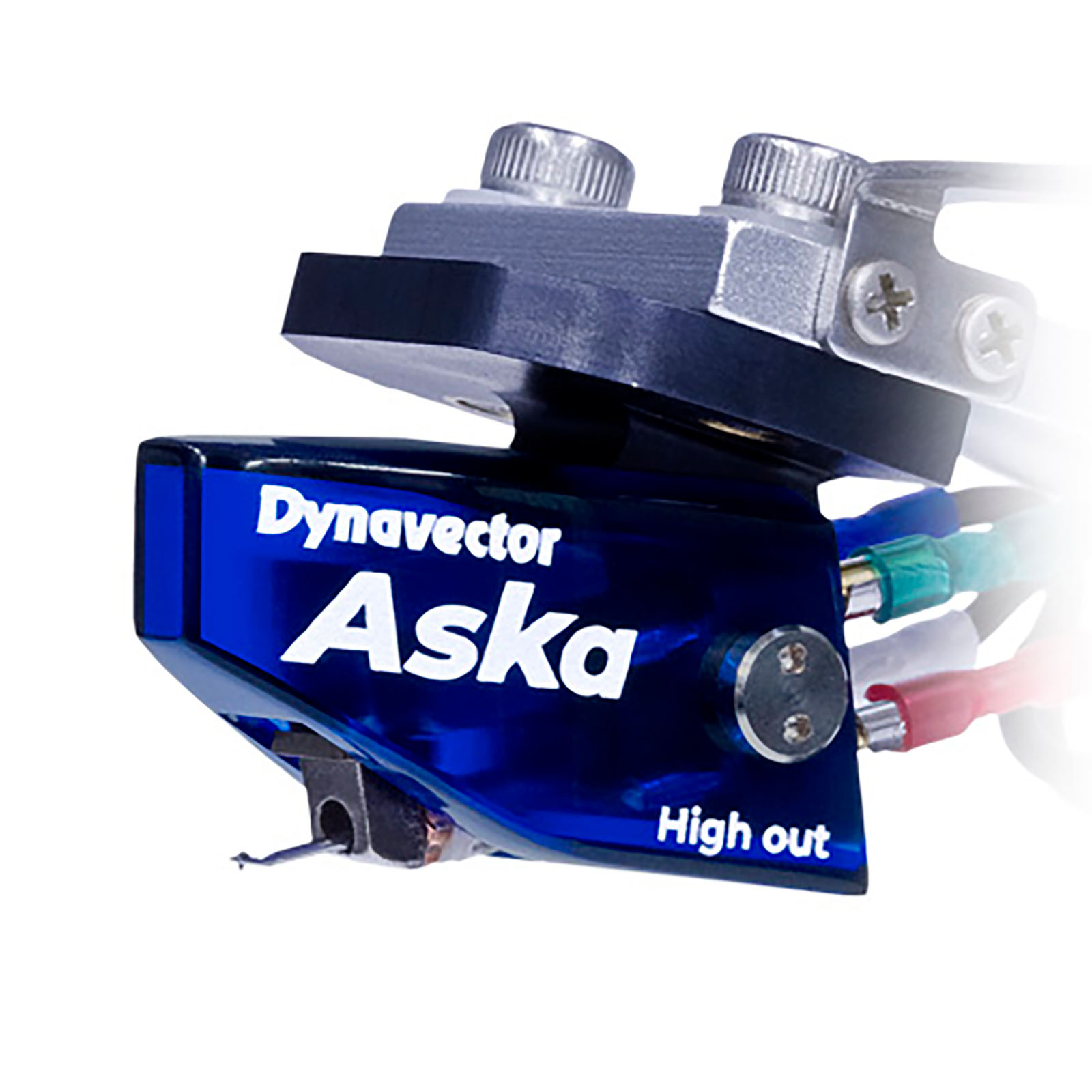

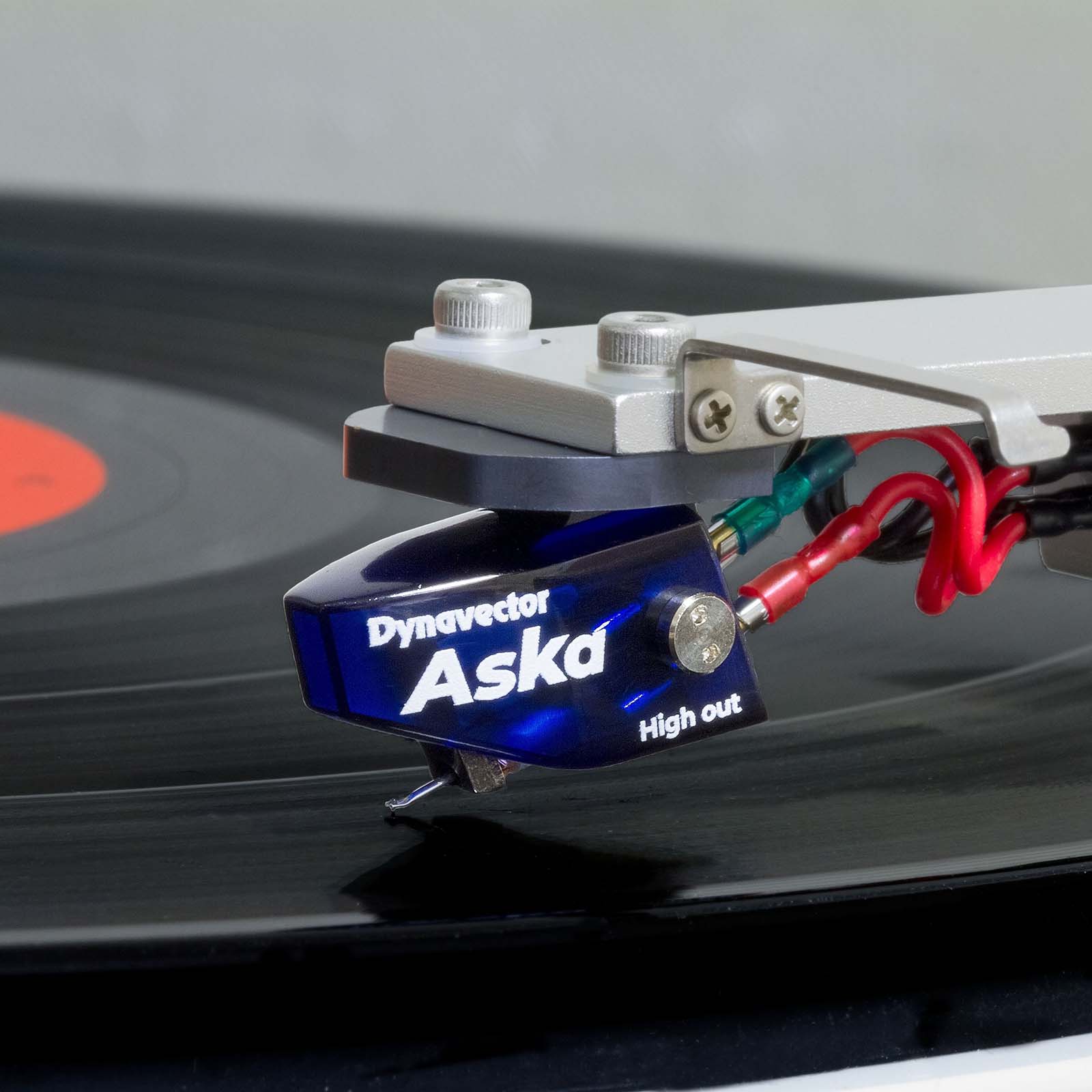

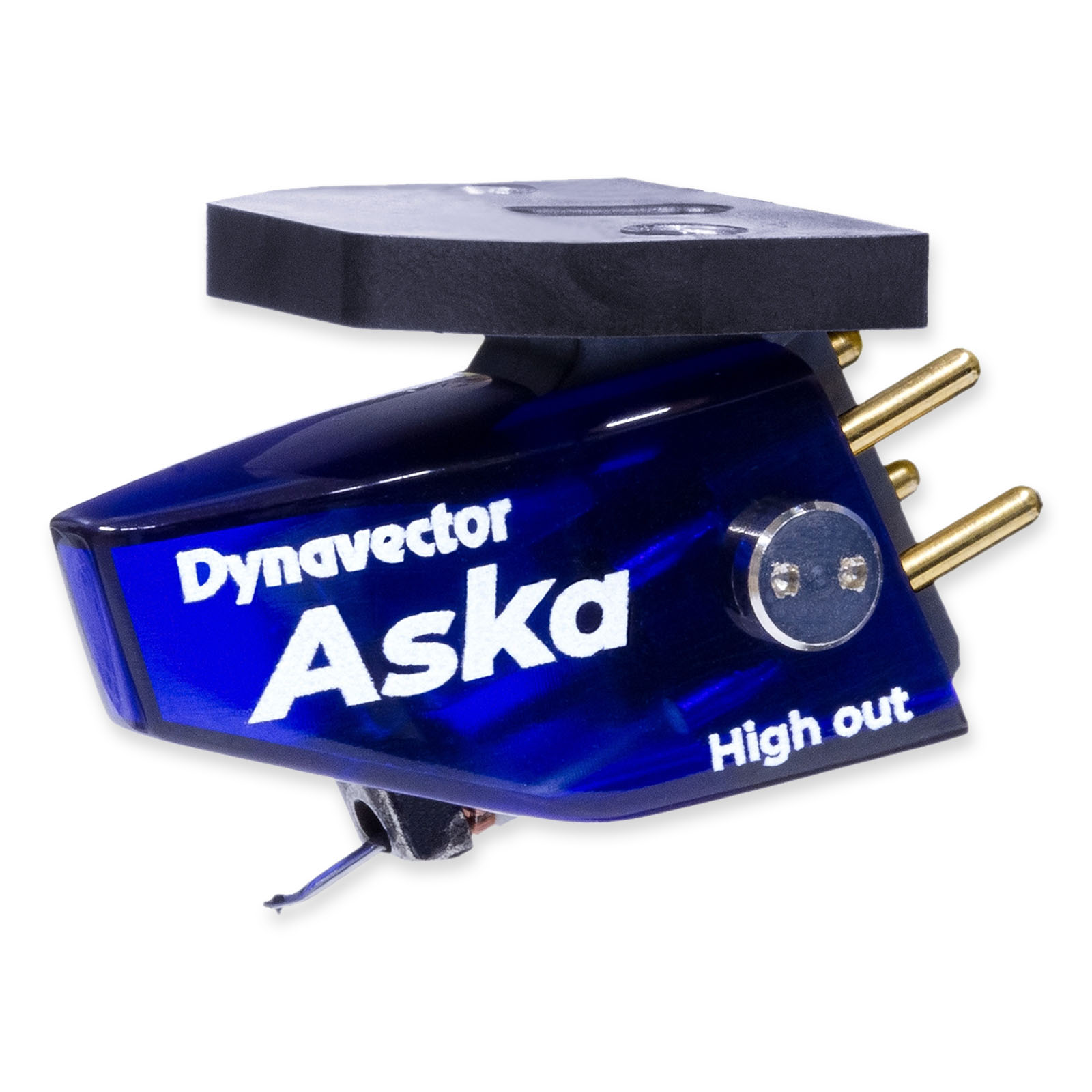

Dynavector ASKA Moving Coil Phono Cartridge (High / Low)

ASKA High / Low Output Entry-Level Moving Coil Phono Cartridge, by Dynavector. Where the Moving Coil Journey Begins!

For nearly 50 years, Dynavector has dedicated itself to the art and science of analogue playback, continuously pushing the boundaries of what MC cartridges can do.

The ASKA is their entry-level MC cartridge, purpose-built to make that first step into MC as inviting as possible. Carrying the same design philosophy and craftsmanship as the higher-end models, it delivers the characteristic Dynavector sound — open, natural, and remarkably low in distortion — at an accessible price point.

At the heart of every MC cartridge lies its magnetic circuit. The quality of that circuit has a direct impact on the sound. Dynavector uses pure iron for its stable and low-distortion magnetic properties, and takes this a step further with a carefully controlled annealing process.

By precisely managing factors such as temperature, environment, and heating / cooling rates, this process refines the magnetic properties of the circuit to deliver expansive resonant sound without distortion and exceptional resolution.

ASKA-H - High Output Model

Dynavector's unique coil winding technology makes high output MC cartridges possible. By winding an ultra-fine wire many times around the coil bobbin, the phono cartridge can retain a healthy 2.8mV output, eliminating the need for a head amplifier or a step-up transformer.

It retains the sonic advantages of an MC cartridge while offering the ease of use of an MM cartridge. Recommended load impedance is 1,000Ω or higher. Connection to a PHONO input in MM position (47 KΩ load) is also possible.

ASKA-L - Low Output Model

The low-output model offers an output voltage of 0.5 mV, allowing excellent compatibility with a wide range of step-up transformers and head amplifiers.

This model lets you fully experience the distinct qualities of MC playback. Recommended load impedance is 100 Ω or higher.

Features

• High & Low Output Options - MM and MC systems supported
• Special Annealing Process - Cleaner signal
• Flux Damper - Magnetic stabilizer
• In-house Quality Control - Individually inspected
• Broad Compatibility - Made for many modern turntables & tonearms
• Easy Installation - Straightforward mounting design
• Elliptical Stylus - Precise tracking

Specifications

• Type: High / Low output moving coil cartridge,with flux damper and softened magnetism
• Output Voltage: 2.8 mV / 0.3 mV (@ 1 KHz, 5 cm/sec.)
• Channel Separation: 25 dB (@ 1 KHz)
• Channel balance: 1.0 dB (@ 1 KHz)
• Frequency response: 20 - 20,000 Hz（±2 dB）
• Compliance: 12 mm/N
• Tracking force: 1.8 - 2.2 g
• Impedance: 150 ohms / 5 ohms
• Recommended load impedance: > 1,000 ohms / > 30 ohms
• Cantilever: 6 mm length hardened aluminium pipe
• Stylus tip: Elliptical
• Weight: 5.8 g
