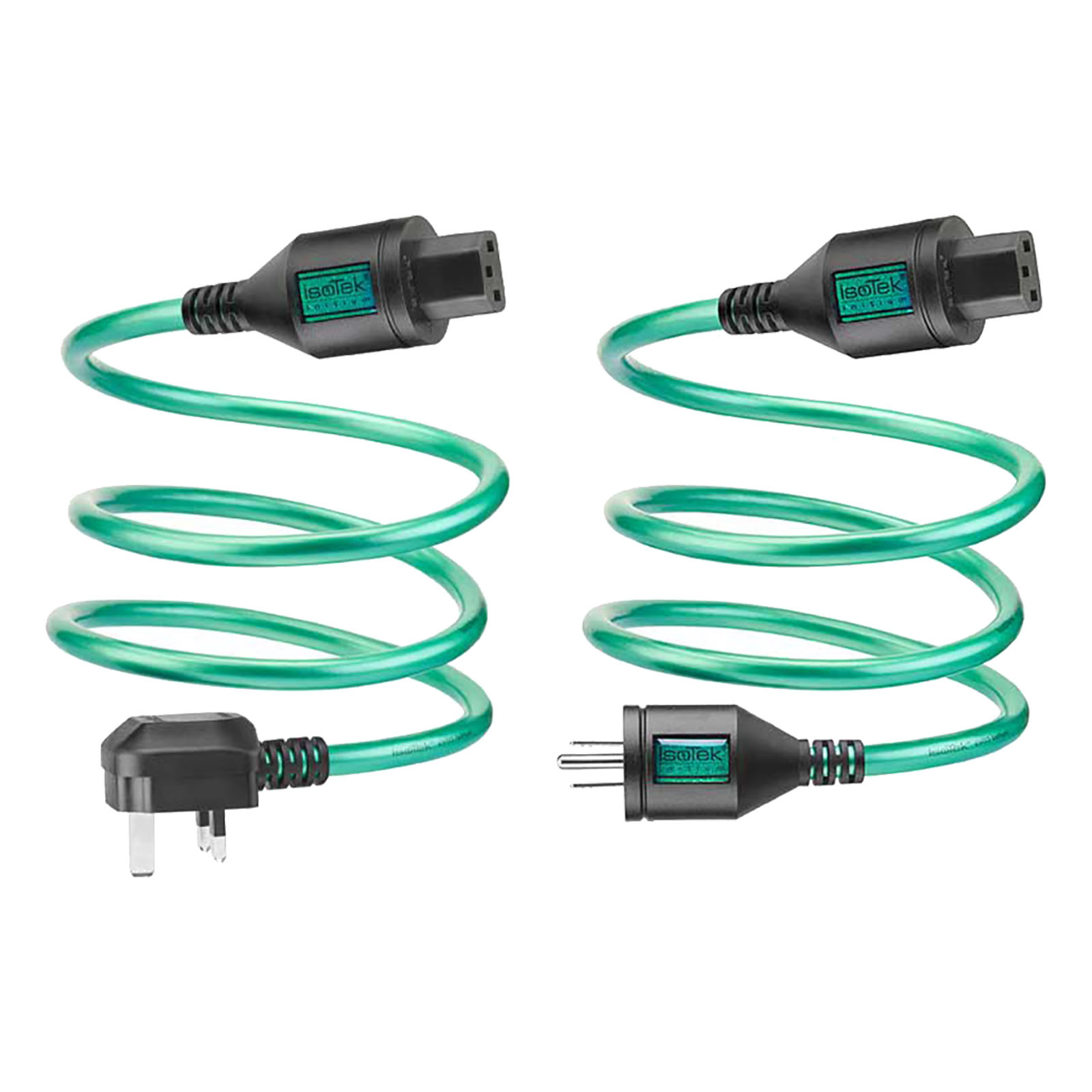

IsoTek EVO3 Initium Mains Power Cable

EVO3 Initiam Mains Power Cable, by IsoTek.

EVO3 Initium is the entry-level power cable from IsoTek, designed to offer high quality performance at an extremely fair price. Initium is a must for replacing all of your free standard black plastic power leads which have been designed down to a price, not up to a quality.

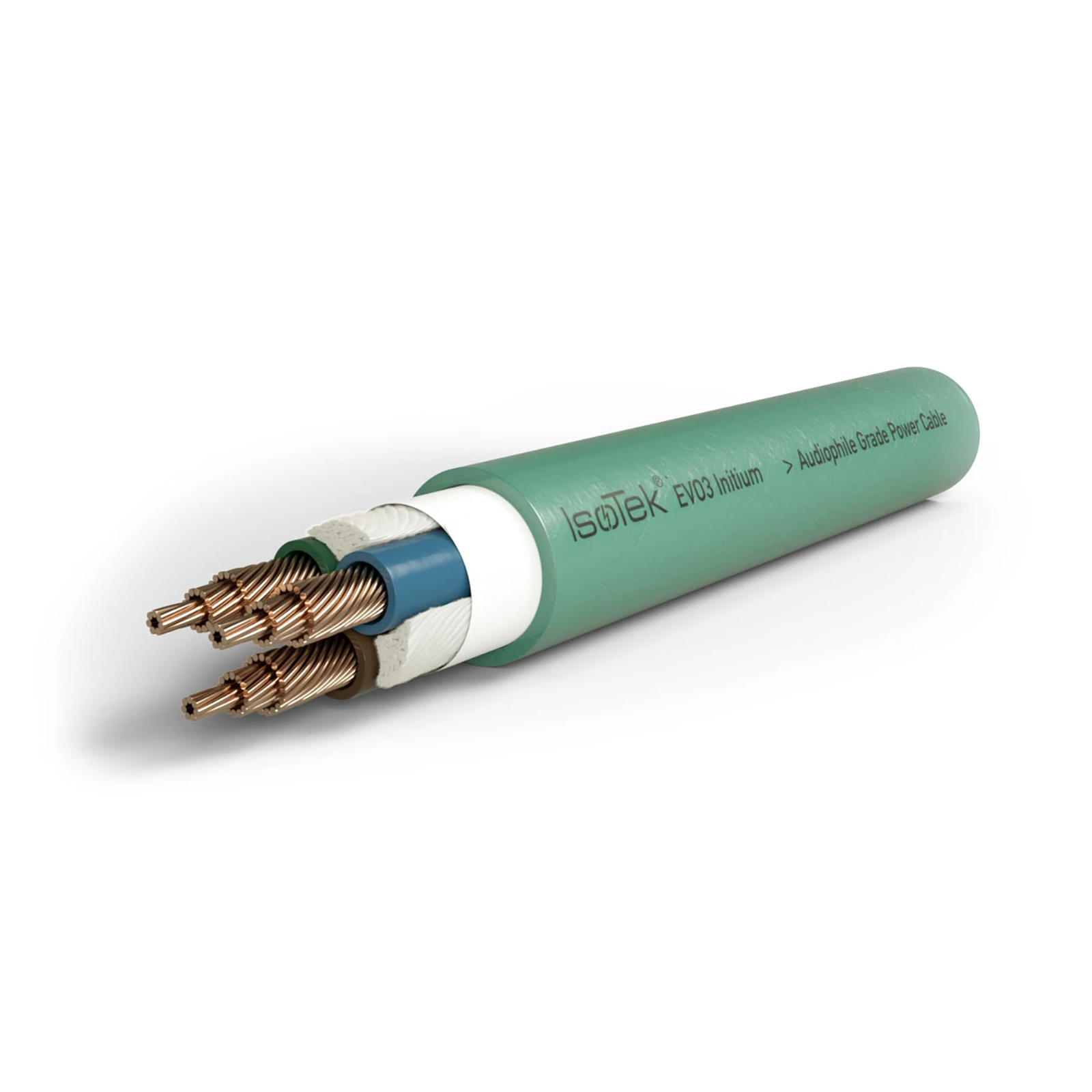

The conductors are in a parallel construction with a slight rotational twist. This established technique remains the first line of defence against RFI and EMI rejection.

99.9999% OFC conductors offer an exceptional level of purity with enhanced conductivity. They are less likely to fracture or degrade over time.

PE dielectric (insulation) is chemically inert and has a very low dielectric constant over a wide frequency range. PE possesses a very high degree of stress crack resistance and a low coefficient of friction making it an exceptional dielectric. PE is a good choice for safety in both temperature and electrical insulation.

Cotton filler has been used to give the cable internal strength and reduce microphony. Cotton also possesses excellent dielectric properties, the best of a solid material.

A paper wrap is used to secure the construction prior to the application of a flexible PVC jacket. The addition of the paper and cotton form a buffer with the PVC so as to maintain exceptional dielectric properties.

PVC is used as the outer jacket to give a high degree of flexibility and mechanical strength.

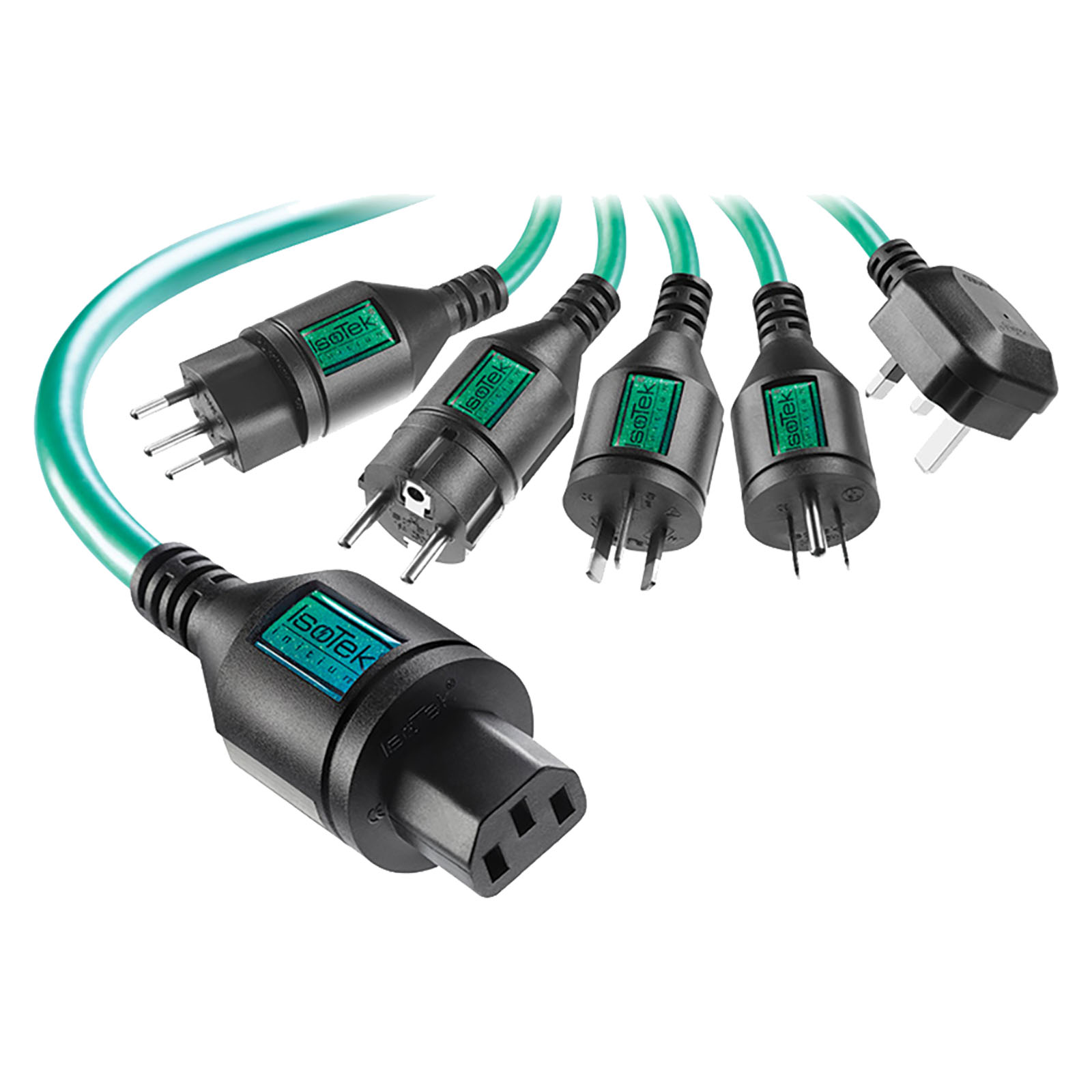

Initium cable is terminated using IsoTek’s bespoke Audiophile grade moulded connectors of solid OFC. These offer good performance qualities (90% copper/10% zinc (CuZn10) with robust nickel plating).

Features

• High performance at an entry-level price.
• Multi 6N OFC AG - 99.9999% OFC conductors.
• Audiiophile grade moulded connectors, with solid OFC contacts.

Specifications

• Conductor Size: 3 x 2.0 sqmm (AU/NZ 1.5sqmm)
• Conductor Material: 99.9999 % Oxygen Free Copper
• Dielectric: Polyethylene (PE) (AU/NZ PVC)
• Constance: PE 2.25 (AU/NZ PVC 3.18)
• Filler: Cotton
• PVC Barrier: Paper wrap
• Outer Jacket: High flexibility PVC
• Power Rating: 16 Amp

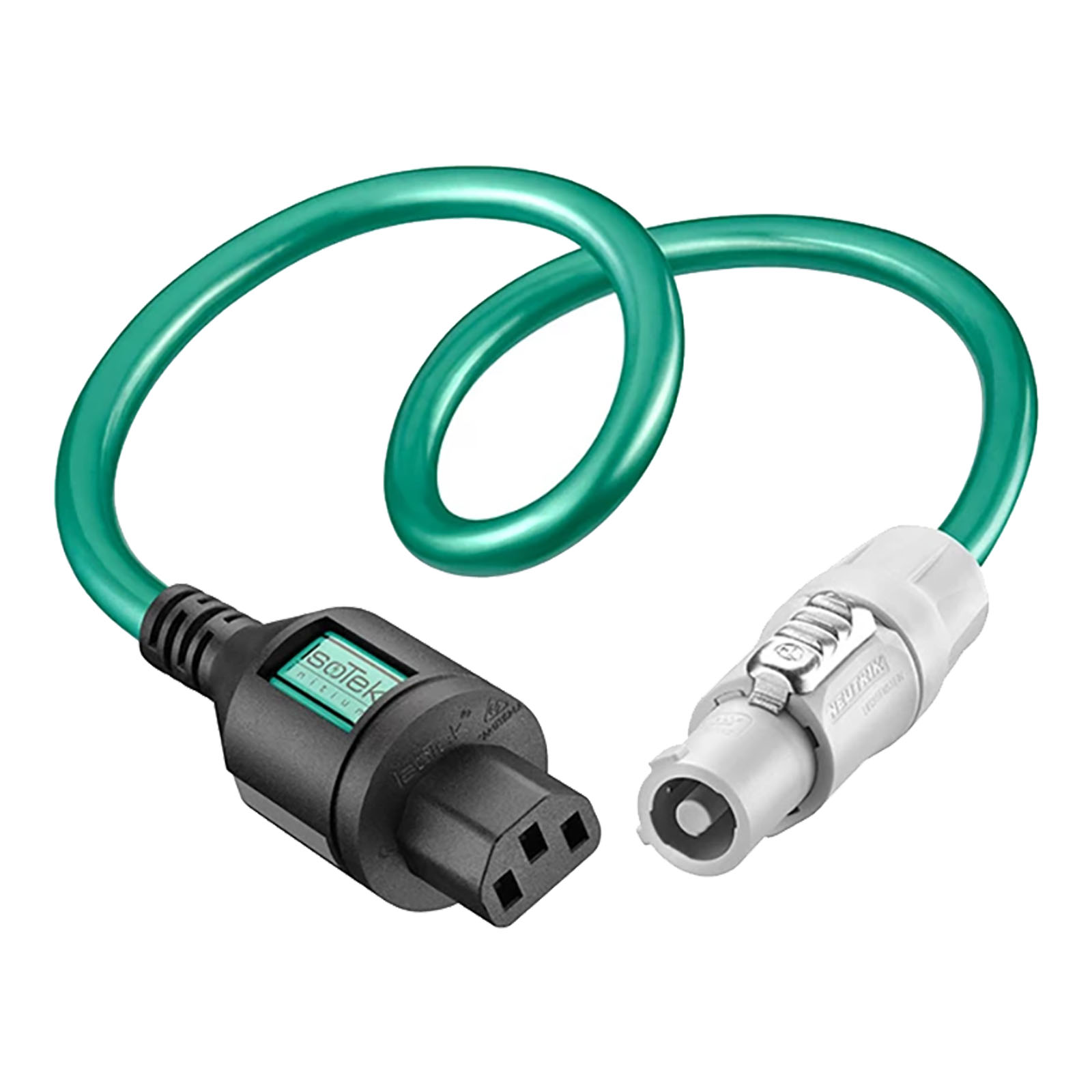

• Standard Length: 1.5 / 3.0 m (no custom length), System Link 0.5 m
• Outer Diameter: 10 mm
• Termination: Nickel plated audiophile-grade connectors

More Information

• EVO3 Initium, by IsoTek
