Description
The EVO3 Mosaic Genesis is a hybridised version of the IsoTek Ultimate series. Combining the extremely low THD sine wave generation engine from Genesis combined with a lighter version of the EVO3 Super Titan passive Direct-Coupled conditioning network, to deliver the perfect balance between power and performance.

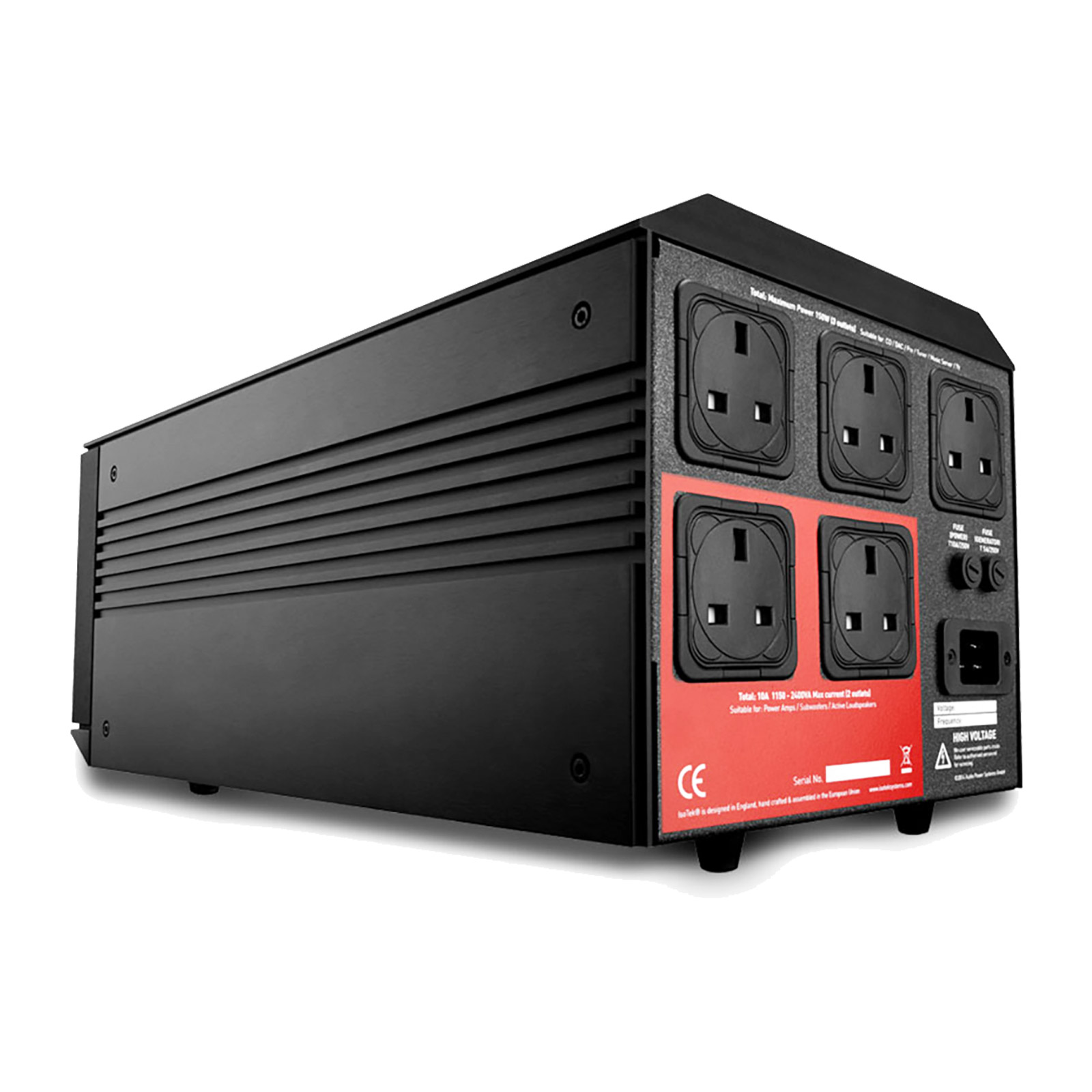

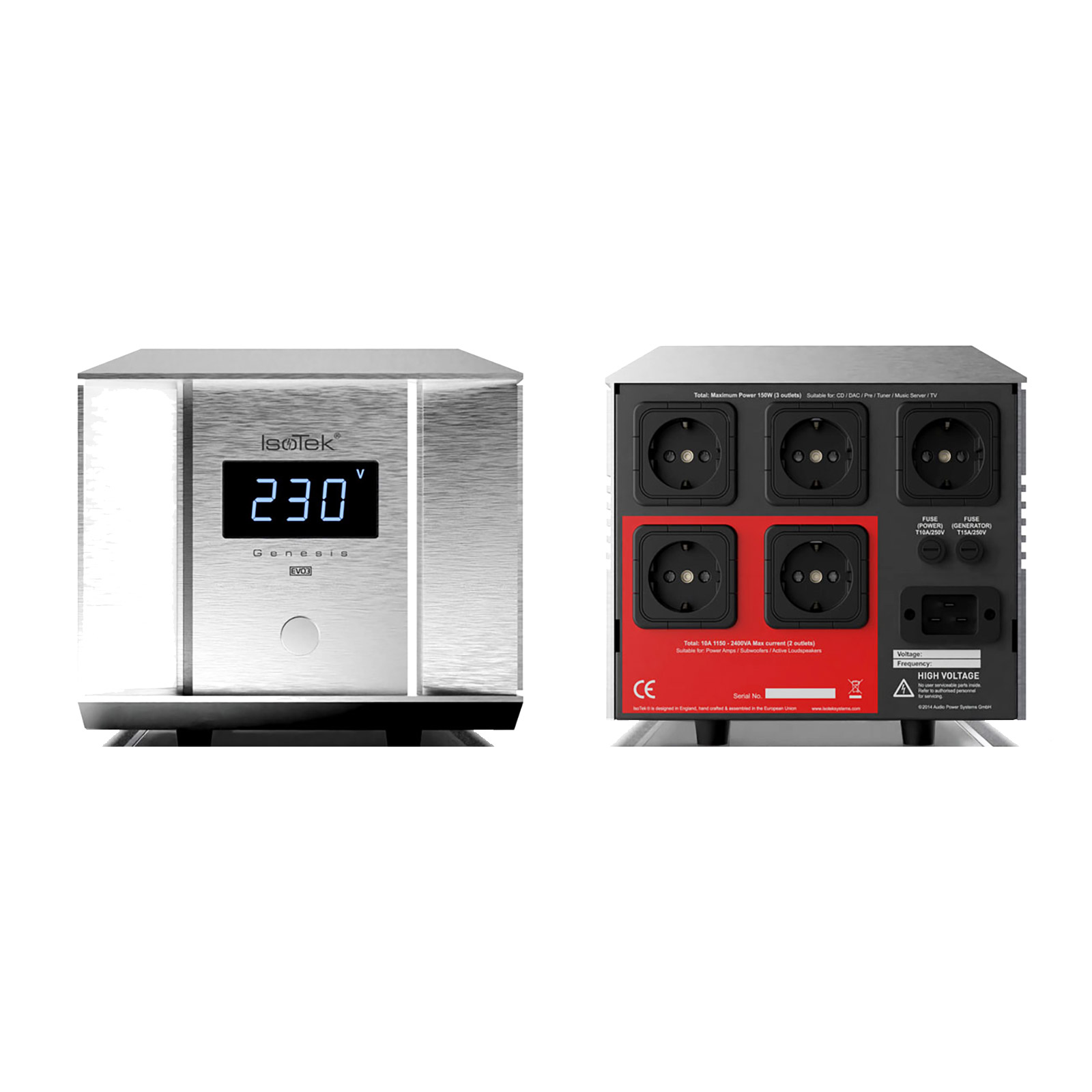

A state-of-the-art hybrid power cleaning system, EVO3 Mosiac Genesis combines the full mains sine wave generation system as seen in the IsoTek Ultimate Series EVO3 Genesis, combined with the high current, very low impedance Direct Coupled Design circuit from the award winning Titan series. The EVO3 Mosaic Genesis measures 225 mm wide, 470 mm deep and 225 mm high and features five independent output sockets at the rear - three of which provide a totally new regenerated mains sine wave rated at 150 W continuous for system source components, the remaining two output sockets offer an extremely low impedance, high current supply for power amplifiers, active loudspeakers or sub woofers, and feature IsoTek’s unique Direct Coupled Design circuit.
Cross contamination of connected components kept to an absolute minimum due to the mains sine wave regenerative circuit combined with multiple power cleaning stages for each output socket. Most power filters join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next. The electrical architecture and design of Mosaic Genesis is dramatically superior.
The internal wiring of IsoTek products matches the range of IsoTek power cables, addressing one critical but overlooked area of maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.
PLEASE NOTE: This is a very heavy item (above 20 Kg) and may only be ordered for Click & Collect. If you wish to arrange shipping please contact us before purchase to discuss options.
Features
- Suitable for all high-end audio or AV systems.
- Hybrid power cleaning system combining full mains sine wave generation with IsoTek Titan direct coupled design circuit for low impedance high current power delivery.
- Removes Common and Differential Mode mains noise.
- Regenerates a new low 0.03% total harmonic distortion sine wave to 3 output sockets (150 W in total).
- Stabilizes voltage to 230 V or 115 V +/- 1% (3 output sockets).
- Delivers low impedance high current for power amplifiers to 2 output sockets.
- Solid-core Ohno Continuous Cast copper silver-plated internal wiring with FEP virtual air dielectric.
- Supplied with IsoTek EVO3 Premier Power Cable.
- UK, EU, US, AU, CH outlets available.
Specifications
- Total Outlets: 5
- Outlets 1-3 / Sine Wave Generation: 150 W
- Outlets 4-5 / High Current: 3680 W (UK, EU, AU, CH) / 1840 W (US)
- THD: 0.03%
- Voltage Stabilisation: 230 V or 115 V +/- 1%
- Mains Inlet: 16 A IEC C20
- Mains Voltage: 100 to 240 V (depending upon model)
- Mains Frequency: 50 to 60 Hz (depending upon model)
- Dimensions (W x H x D): 225 x 225 x 470 mm
- Weight: 20 Kg
Included
- IsoTek EVO3 Premier Mains Power Cable
