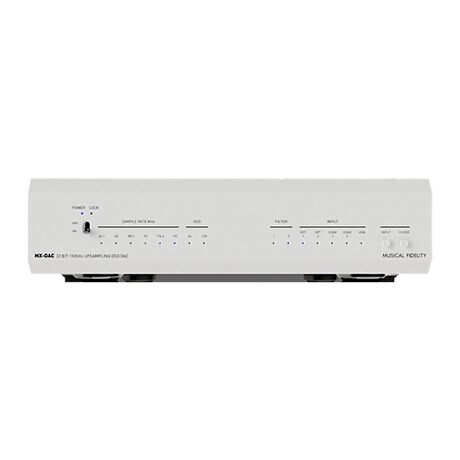

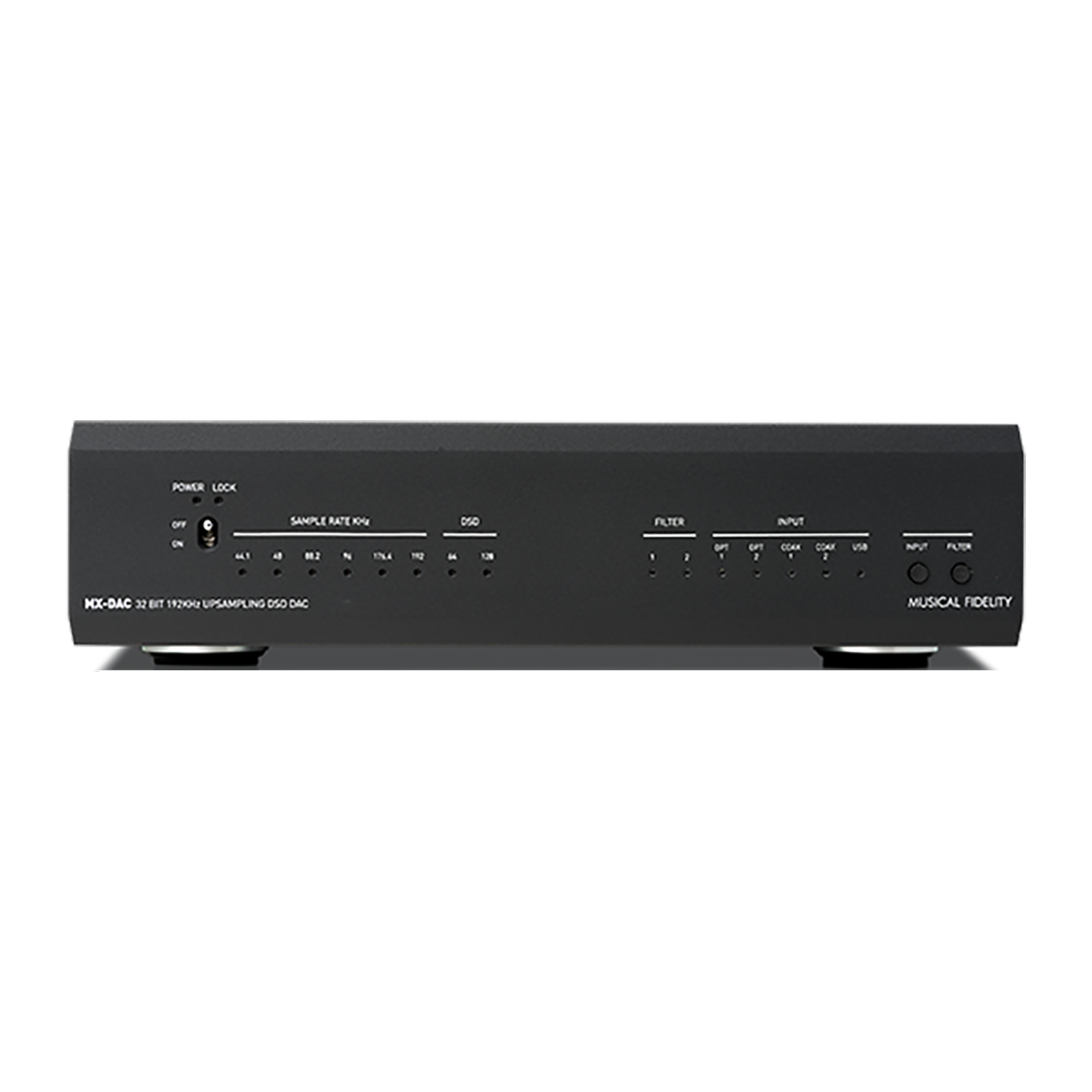

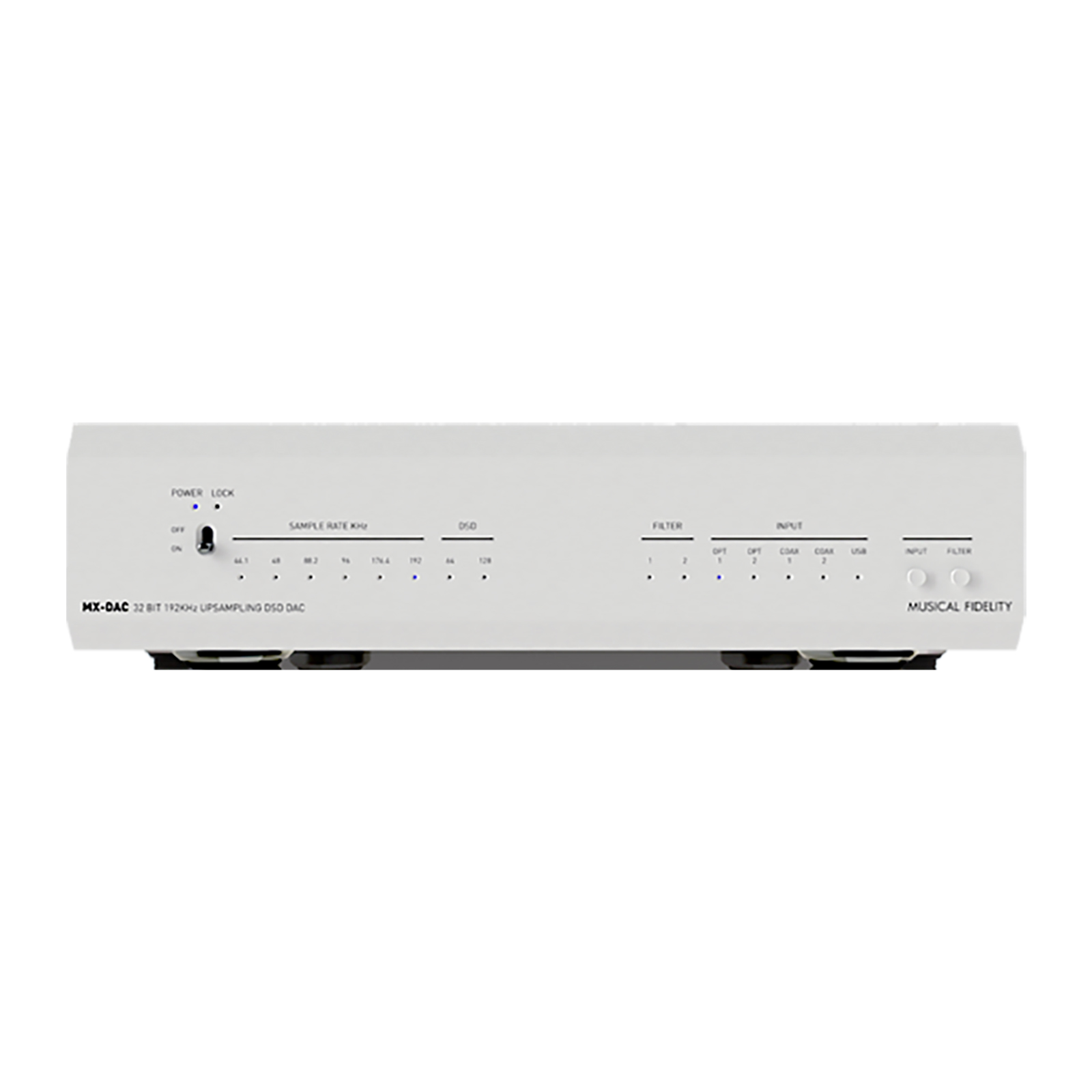

Musical Fidelity MX-DAC Digital-To-Analogue Converter

AS-MF-MXDAC
£524.17
+
We are able to ship to United States - View Rates


Description

After years of patient research and development, Musical Fidelity are proud to launch the MX-DAC with DSD. With its technical innovation, superb technical performance and excellent build quality, the MX-DAC offers truly outstanding value for money.

MX-DAC is a tremendous performer. It has ultra low distortion, very wide bandwidth and low noise. The technical performance of the MX-DAC is on a par with any other DAC at any price, to ensure completely neutral and accurate digital-to-analogue conversion of any digital input.

The MX DAC has inputs for two coaxial (up to 24bit 192 kHz PCM), two optical (up to 24bit 192kHz PCM) and asynchronous USB up to 24bit 192 kHz PCM as well as DSD 64 and DSD 128. All inputs are processed in the DSD domain, which gives a warmth and humanity to the sound that simple digital conversion fails to achieve. MX-DAC has both single-ended and balanced outputs.

Part of the Musical Fidelity MX range, MX-DAC has beautiful aesthetics and wonderful build quality. The front panel and housing are both from exclusive custom-made extrusions using mil-spec aluminium.


Features

  • Superlative state of the art performance with ultra-flat frequency response.
  • Able to process DSD64 and DSD128 formats as well as PCM up to 192 kHz / 24-bit.
  • Multiple digital inputs – 2x coax, 2x optical, plus asynchronous USB.
  • All inputs processed + converted in DSD domain.
  • Very low noise.
  • Extremely low distortion.
  • Outstanding linearity.
  • Outstanding channel separation.
  • Beautiful aesthetics + build quality.

Specifications

  • Sample Rate Converter: SRC4392 up-sampling data to 192kHz
  • Digital-to-Analogue Converter: PCM1795 32-bit / 192 kHz Multi-bit Sigma-Delta type
  • Output Voltage: 2 V RMS single-ended (RCA), 4 V RMS balanced (XLR)
  • PCM THD: < 0.002 %
  • PCM THD (+ noise): < 0.003 %
  • DSD THD: < 0.003 %
  • DSD THD (+ noise): < 0.006 %
  • PCM Frequency Response: –3 dB, 2 Hz to 90 kHz, –3 dB, 2 Hz to 40 kHz
  • Channel Separation: -110 dB
  • Coaxial Inputs: S/PDIF up to 24 bit / 192 kHz
  • Optical Inputs: S/PDIF up to 24 bit / 192 kHz

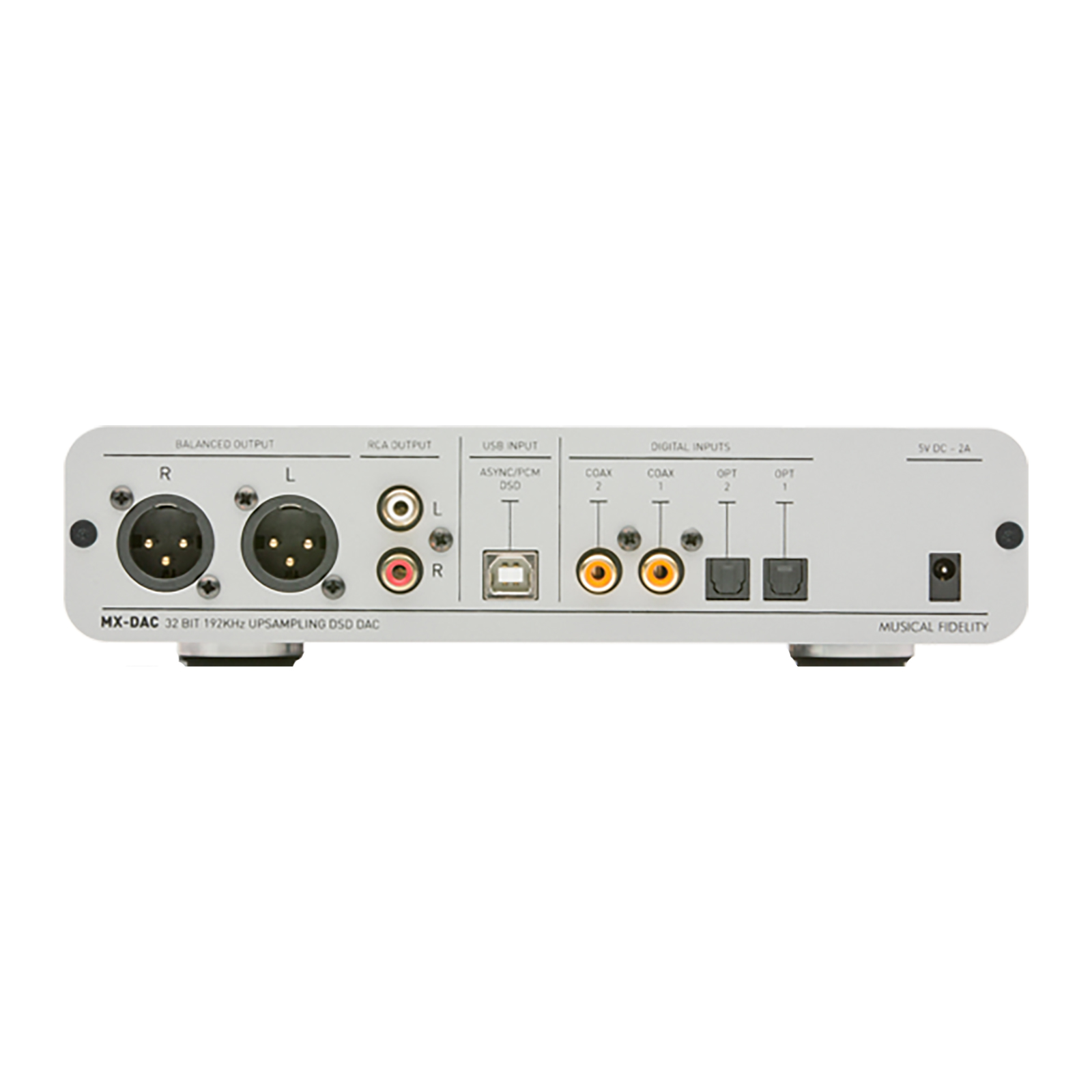

  • Inputs:
    • 2x RCA coaxial connector SPDIF 32-192 kHz (16-24 bit stereo PCM)
    • 2x TOSLINK optical connector 32-192 kHz (16-24 bit stereo PCM)
    • 1x USB Type-B connector, asynchronous data stream at up to 24-bit / 192 kHz PCM, DSD64, DSD128
  • Outputs:
    • 1x line-level RCA (single-ended)
    • 1x XLR Male sockets (balanced) to EIA RS-297-A
  • Dimensions WxHxD: 220 x 53 x 215 mm
  • Weight: Unboxed 1.9 kg, Boxed 2.4 kg
  • Power Consumption: <: 0.25 W standby, < 1 W max.

Included

  • 5 V / 2 A DC power supply (90-250 V AC universal worldwide supply)
  • Windows driver CD
  • User manual

More Information

Delivery and Returns

Your country is set to: United States
Shipping method Delivery Time Cost

Please be advised that we may upgrade your delivery to a better service if we deem it appropriate to designated destinations at no additional cost. Please view our returns policy.
*Quoted delivery times are estimates and apply to normal working days for in stock items.

Information

Manufacturer:
Musical Fidelity
Try In Store:

DAC Specification

Digital Coaxial Input:
2
Digital Optical Input:
2
Digital USB Input:
1
Asynchronous USB Data:
Yes
RCA Output:
1
XLR Output:
1
