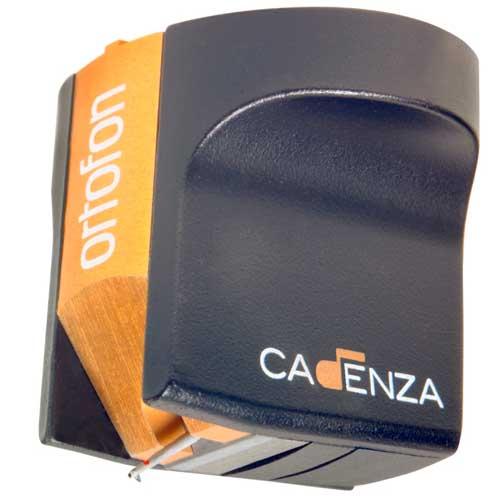

Ortofon Cadenza Bronze Moving Coil Cartridge
Description
The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever. The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire. Field Stabilizing Element FSE, is used for optimal linearity especially during complex crescendo passages.
Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact and dynamics. Its stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.
|
Technical data |
|
| Output voltage at 1000 Hz, 5cm/sec. | 400 μV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 24 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency range at - 3dB | 20 - 55 kHz |
| Frequency response 20 Hz - 20 kHz | +1,5 |
| Tracking ability at 315Hz at recommended tracking force *) | 80 µm |
| Compliance, dynamic, lateral | 12 µm/mN |
| Stylus type | Nude Ortofon replicant,, conical aluminium |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2,2-2,7 g (22-27 mN) |
| Tracking force, recommended | 2,5 g (25 mN) |
| Tracking angle | 23° |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | 50-200 Ohm |
| Cartridge body material | Stainless steel / Aluminium |
| Cartridge colour | Bronze/Black |
| Cartridge weight | 10,7 gram |
Ortofon Exchange Scheme: A moving coil cartridge may be traded in against an equivalent (or superior) model and qualify for a 25% discount off the cost of the new cartridge (25% based upon the cost of the cartridge to be traded in or equivalent) *SPU Series NOT included. Simply contact us and we will get this arranged for you.
