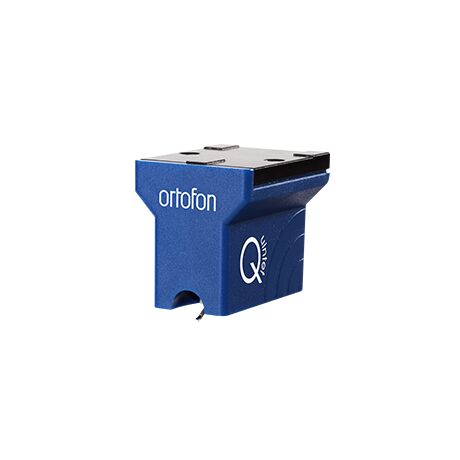

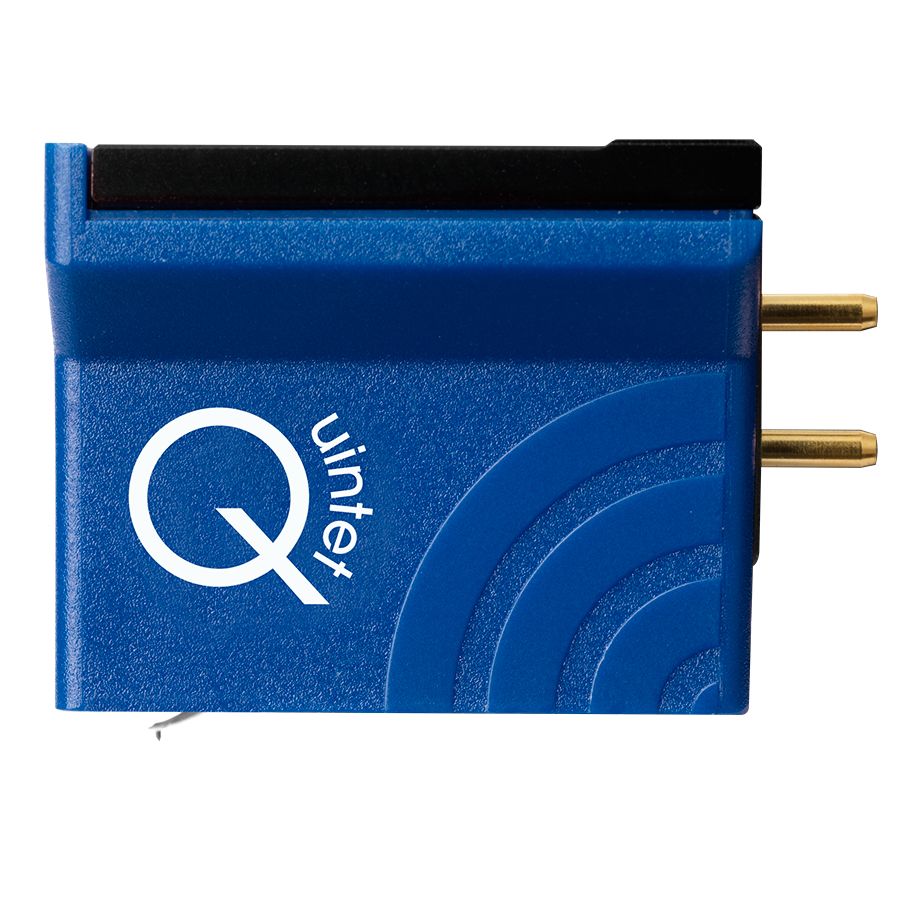

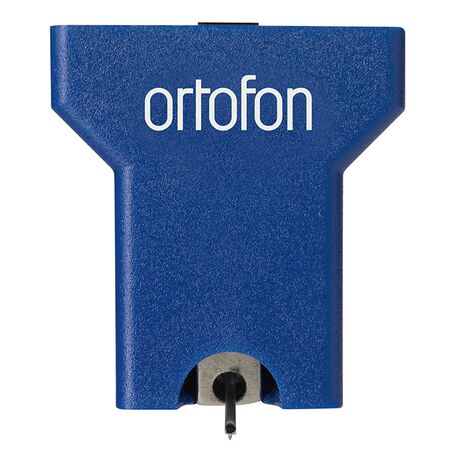

Ortofon Quintet Blue MC Cartridge
AS-ORTO-QT-BLUE
Description
The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever.
Is a very good choice for any kind of music, especially rhythmic.
| Technical Data | |
| Output voltage at 1 kHz 5 cm/sec | 0.5 mV |
| Channel balance | < 1.5 dB |
| Channel separation at 1 kHz | > 21 dB |
| Channel separation at 15 kHz | > 14 dB |
| Frequency range at -3 dB | 20-25.000 Hz |
| Frequency response 20-20.000 Hz | +/-2.5 dB |
| Tracking ability at 315 Hz at recommended tracking force *) | 70 μm |
| Compliance, dynamic, lateral | 15 μm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 μm |
| Tracking force range | 2.1-2.5 g (21-25 mN) |
| Tracking force recommended | 2.3 g (23 mN) |
| Tracking angle | 20º |
| Internal impedance, DC resistance | 7 Ohm |
| Recommended load impedance | >20 Ohm |
| Cartridge body material | ABS/Aluminium |
| Coil wire material | Pure 4-nines copper |
| Cartridge colour | Blue |
| Cartridge weight | 9 g |
| *) Typical value |
