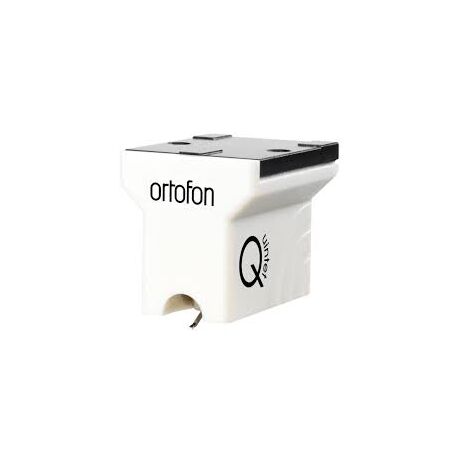

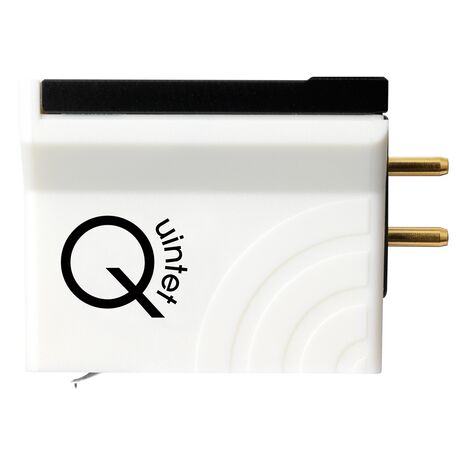

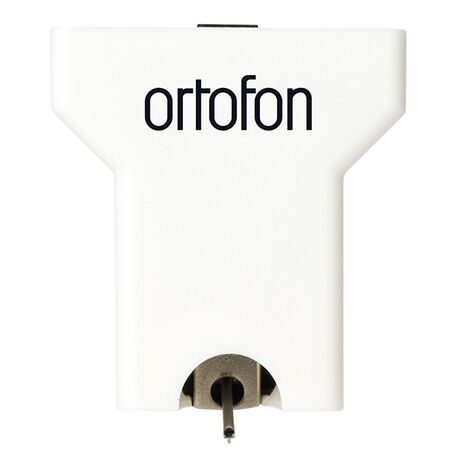

Ortofon Quintet Mono MC Cartridge
AS-ORTO-QT-MONO
Description
The Quintet Mono is a new true Mono from Ortofon.
It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.
Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Quintet Mono is the best cartridge in the Quintet series to play monophonic records.
| Technical data | |
| Output voltage at 1 kHz 5 cm/sec | 0.3 mV |
| Frequency range at -3 dB | 20-25.000 Hz |
| Frequency response 20 Hz - 20 kHz | +/-2.0 dB |
| Tracking ability at 315 Hz at recommended tracking force *) | 70 μm |
| Compliance, dynamic, lateral | 15 μm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 μm |
| Tracking force range | 2.1-2.5 g (21-25 mN) |
| Tracking force recommended | 2.3 g (23 mN) |
| Tracking angle | 20º |
| Internal impedance, DC resistance | 5 Ohm |
| Recommended load impedance | >20 Ohm |
| Cartridge body material | ABS/Aluminium |
| Coil wire material | Pure 4-nines copper |
| Cartridge colour | White |
| Cartridge weight | 9 g |
| *) Typical value |
