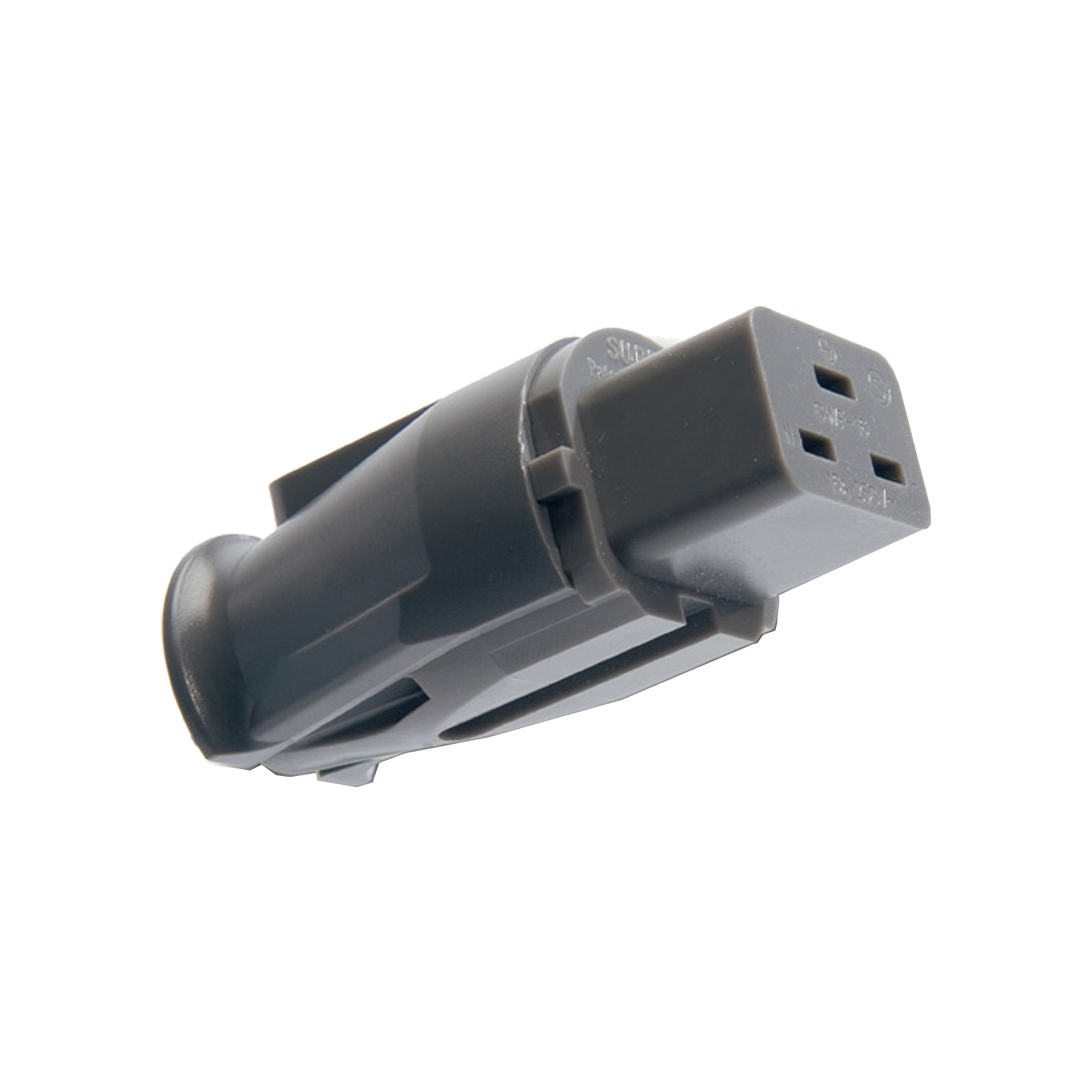

Supra Cables LoRad SWF-16 IEC 16A Mains Connector (Female)

LoRad SWF Series International Female IEC Mains Connectors, by Supra Cables.

Slim version, maximal 16 ampere current, conforms to the international standard IEC-320. 24K Gold plated contacts with long service life. Accepts cable sizes up to 11 mm diameter and cable lead area up to 2.5 mm2. Fits Supra MCH-10 male chassis connector.

Supra SWF is a series of female cable mounted mains sockets for 110 up to maximal 250 volt, safety approved Hospital Grade and Audio Grade. Designed according to the international standard IEC-320 and viable around the world. This connector is for maximum 16 ampere and there is also a slightly smaller 10 ampere version.

All Supra LoRad mains block from MD-08 and up offer the corresponding 16 ampere male chassis connector, MCH-16, hence the LoRad cable must provide the 16 ampere SWF female connector. They accept large cable diameters for the convenience of a number of cable brands and are of course proven to be the best connector for the Supra LoRad mains flex range.

IEC-320 is an international standard for electrical devices with detachable power cords. It will mate the European, British and US Standards.

Specifications

• Standard: International IEC-320 standard for electrical devices with detachable power cord.
• Maximal Current: 16 Ampere
• Nominal (Maximal) Voltage: 110 - 230 (250) Volt
• Mains Frequency: 50-60 Hz
• Maximal Cable Size: 11 mm diameter.
• Maximal Cable Area: 2.5 mm2
• Pins + Cable Clamp: 24K gold plated pins, screw clamps.
• Cable Strain Relief: Integrated in housing, activated when assembled.

Included

• x1 SWF-16 IEC 16A Mains Connector, Female

More Information

• LoRad IEC 16A Mains Connector, by Supra Cables
