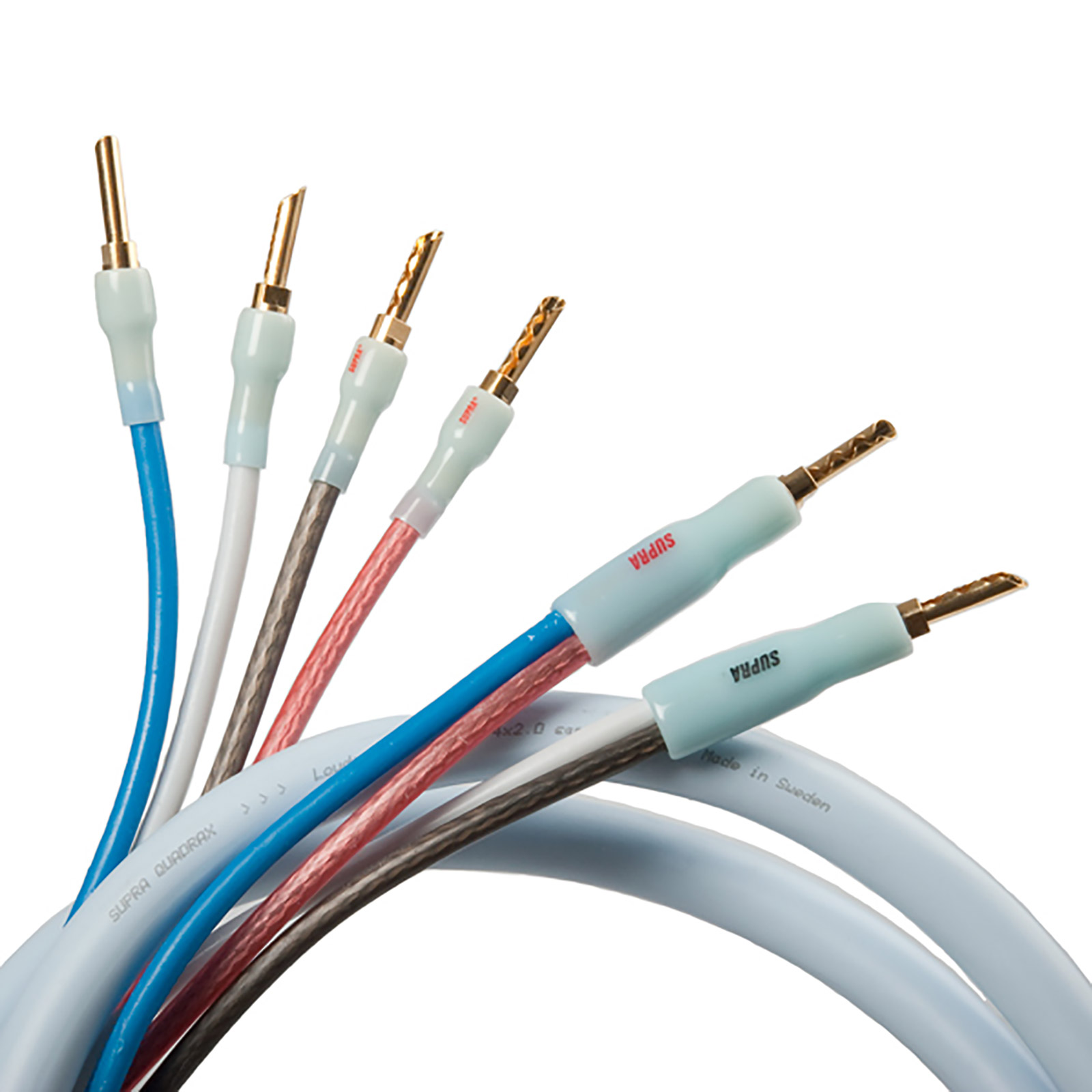

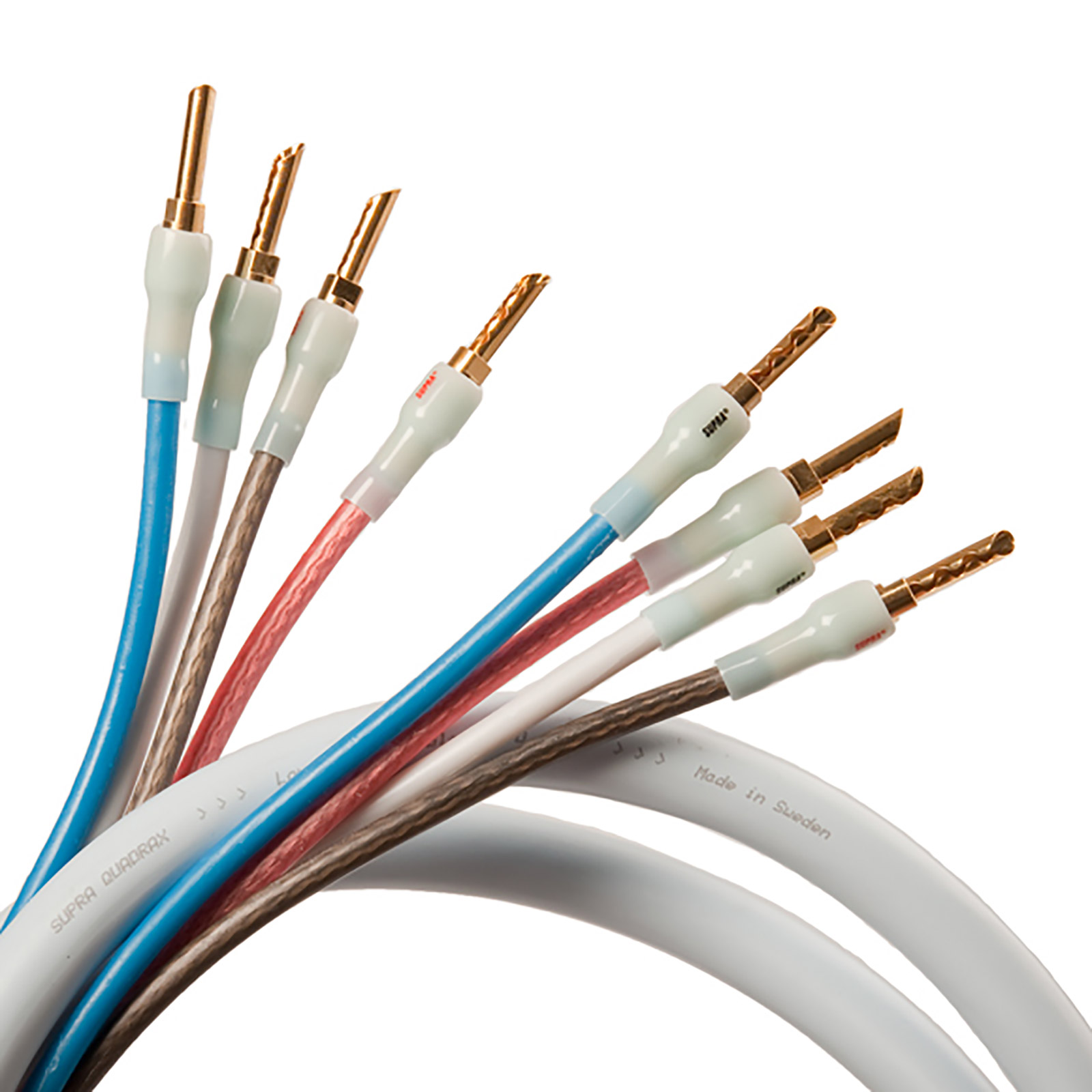

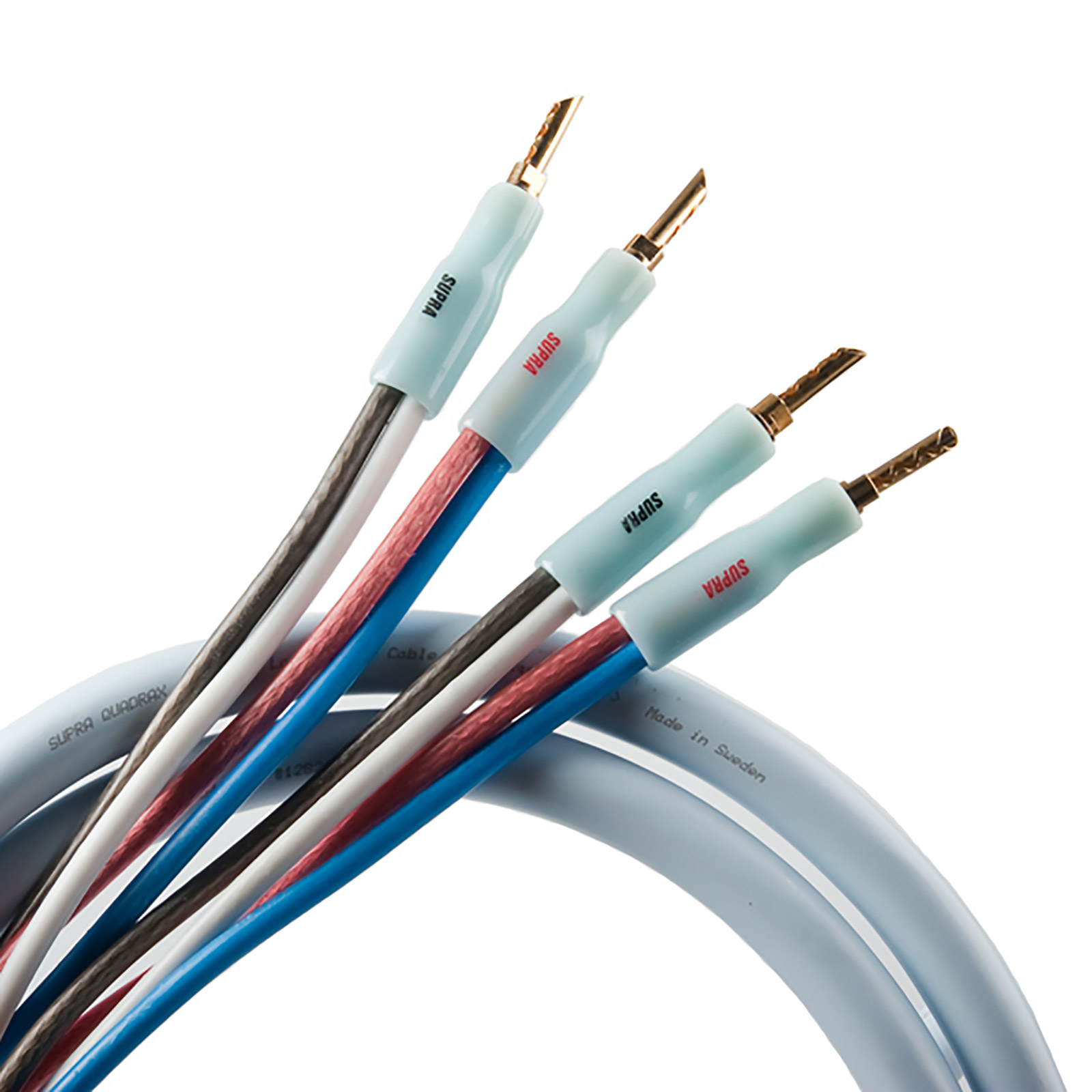

Quadrax, by Supra Cables is loudspeaker cable with added emphasis! Offering a really affordable high-end speaker cable with tube conductors of 4 x 2.0 mm, at such a price it is nothing less than a bargain.
The tube conductor design means that 120 individually tin-plated, braided strands form a tube around a PP plastic core. It forces the music signal to meet the same cross-sectional area irrespective of frequency. The higher frequency, the further out in the conductor perimeter the law of physics forces the signal, hence resulting in unequal conductivity properties for the various frequencies.
If addressed in the cable design with tube formed leads, the differences are managed efficiently, allowing for a flat frequency response, ultra-fast transients and transparency. If configured in a Star Quad conductor formation (single wire/full range) RFI pickup and outgoing magnetic fields (lowered inductance) are almost completely cancelled out, thanks to the symmetry of current in the opposite conductor pairs. Finally the tin-plating of each strand will counteract any current-jumping tendencies, thus creating a diode effect followed by corresponding phase shift.
In addition to the malignant inductance affecting any power transmissions with high current transients, Quadrax also offers a lowered capacitance. The special PolyPropylene (PP) insulation and conductor core is chemically and physically extremely stable and features low capacitance too.
Please note this listing of Supra Quadrax is for bi-amp use, with the cables configured in 4-to-4 mode, with each conductor being terminated separately at both ends.
- Brand: Supra Cables
- Range: Quadrax
- Type: Single Wire, 4-Core
- Configuration: Bi-Amp (4 to 4), separately terminated at each end.
- Conductors: 4 x 120 x 0.15 Tin-Plated OFC
- Insulation: Chloride Ion-Stabilised PVC
- External Diameter: 15 mm
Supra Quadrax 4X2.0 Bi-Amp is available in the following factory lengths. For all other lengths please contact us to discuss your requirements:
- 2.00 Metre Pair
- 3.00 Metre Pair
- 4.00 Metre Pair
Supra Quadrax 4X2.0 Bi-Amp is supplied pre-terminated with Supra Combicon interchangeable connectors, fitted with either Banana / BFA or Spade connectors at each end:
- Supra 4mm BFA / Combicon Connectors (2 Pairs)
- Supra 8mm Spade Connectors (2 Pairs)
