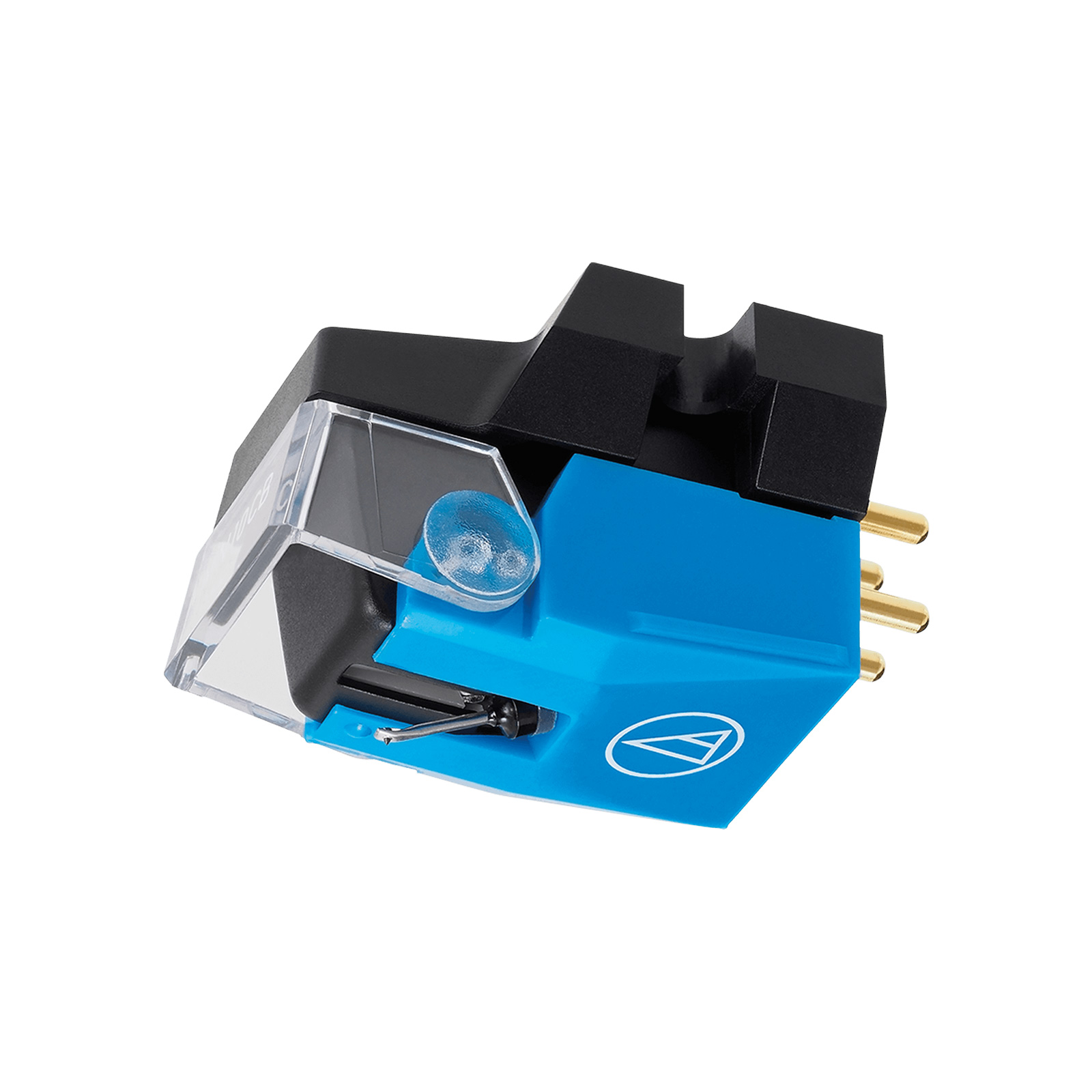

Audio Technica VM610MONO Dual Moving Magnet Mono Cartridge

VM610MONO Dual Moving Magnet Mono Cartridge, by Audio Technica.

With a specialized body and internal wiring dedicated to monaural sound reproduction, the VM610MONO conical stylus cartridge is designed for playing mono records.

Part of the 600 Series in Audio-Technica’s new VM cartridge line - a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM610MONO is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused centre sound image that stereo cartridges can’t provide.

Includes mounting hardware.

Features

• Aluminium cantilever.
• Designed for Mono Vinyl LP reproduction.

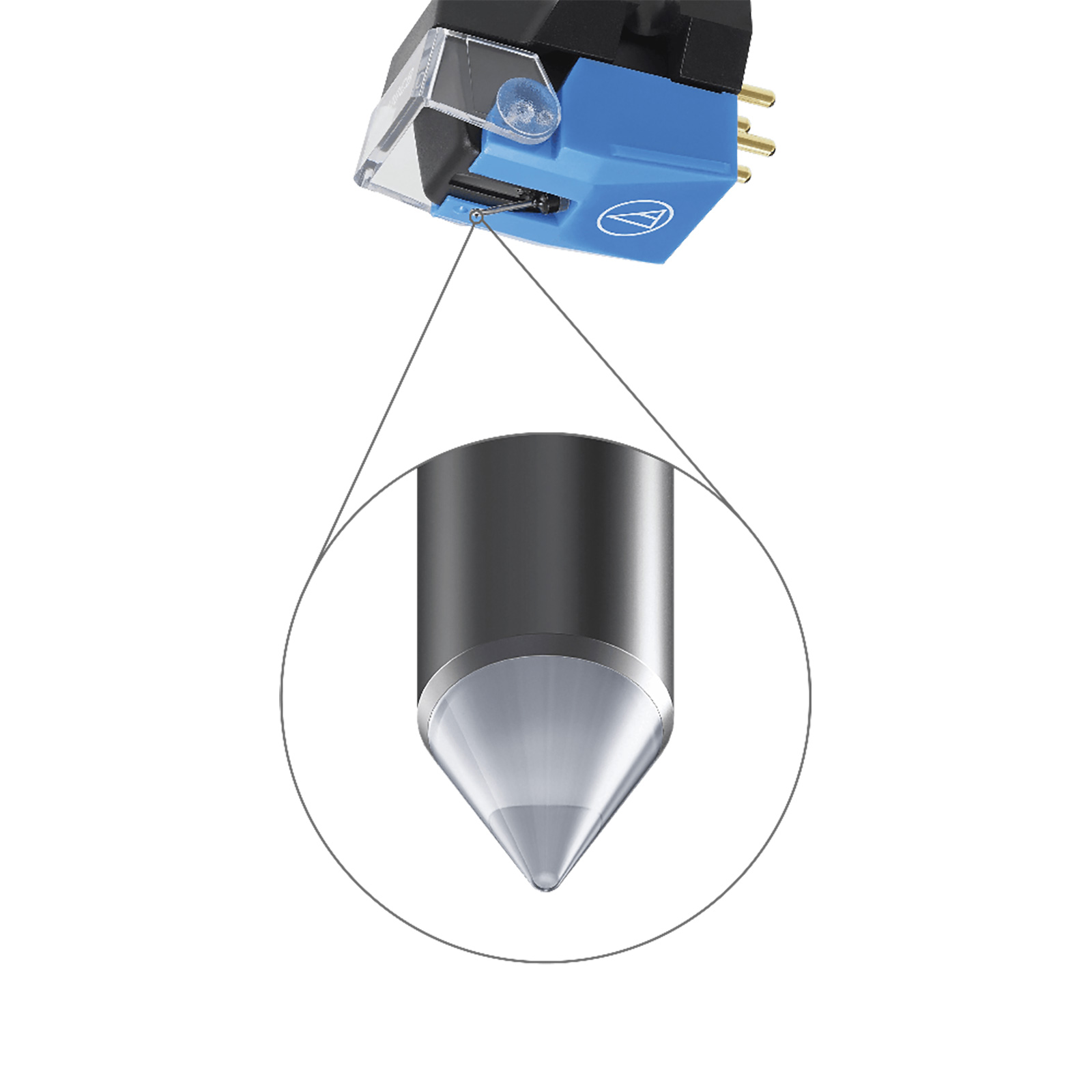

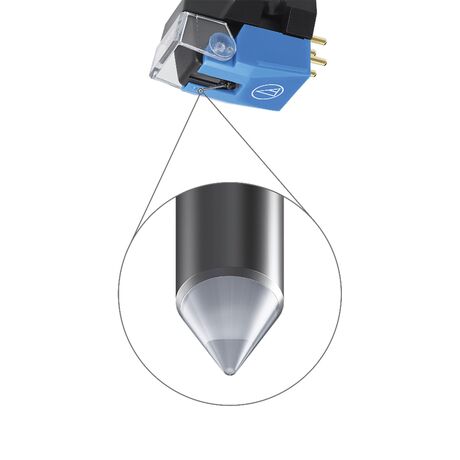

• Conical bonded stylus.
• Durable low resonance polymer housing.

Specifications

• Frequency Response: 20 - 20,000 Hz
• Vertical Tracking Angle: 23°
• Stylus Construction: Bonded Round Shank
• Recommended Load Impedance: 47,000 Ω
• Coil Impedance: 1,400 Ω (1 kHz)
• Output Voltage: 3.0 mV (1 kHz, 5 cm/sec.)
• Stylus Shape: Conical Bonded
• Cantilever: Aluminium Pipe
• Static Compliance: 35 x 10-6 cm/dyne
• Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
• Mounting: 1/2-in centres
• Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Recommended Load Capacitance: 100 – 200 pF
• Replacement Stylus: VMN10CB
• Stylus Size: 0.6 mil
• Type: VM Type
• Weight: 6.4 g

Included

• VM610MONO Cartridge
• Cartridge Installation Screws (5 mm x 2 / 10 mm x 2)
• Washer x 2
• Hexagon Nut x 2
