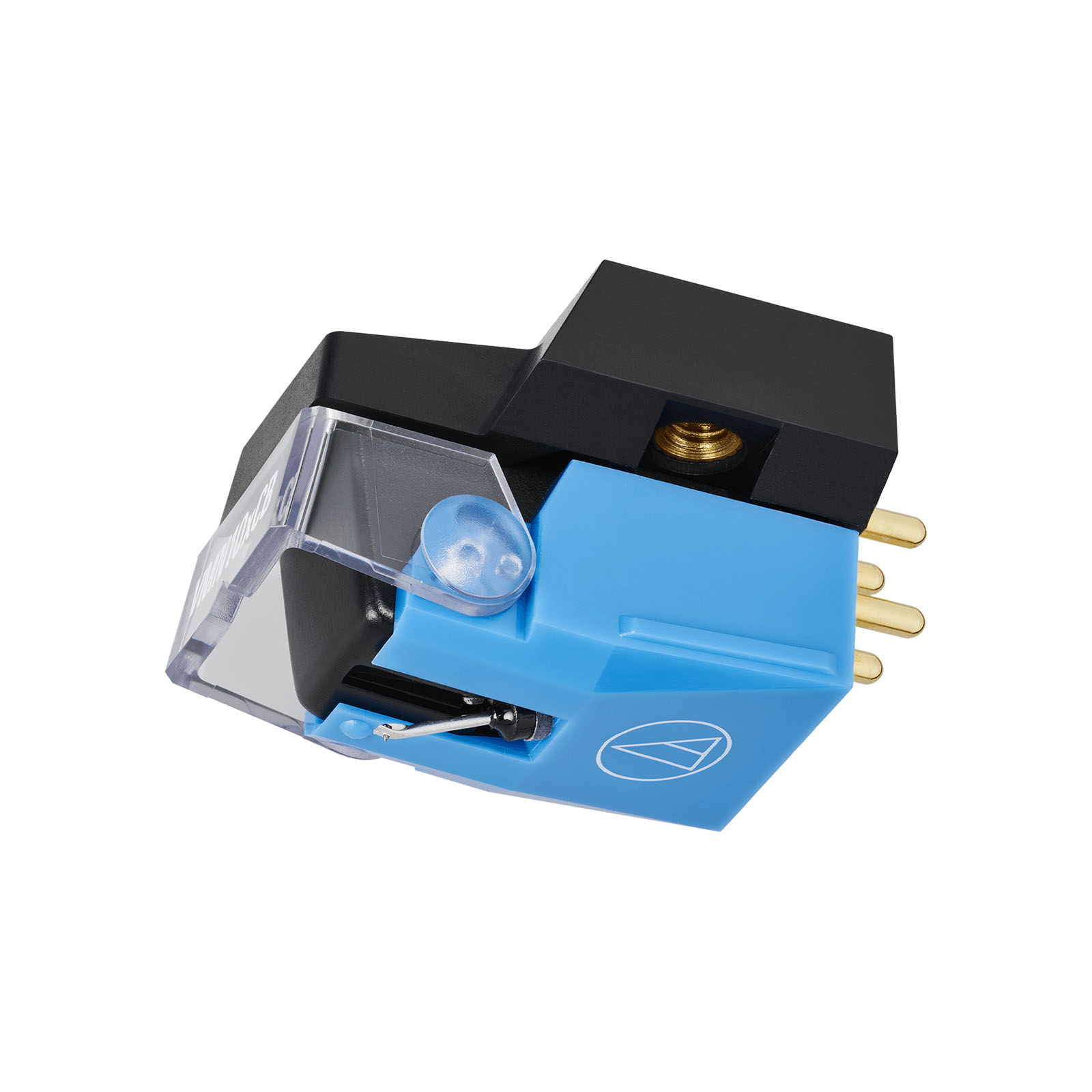

Audio Technica VM610xMONO Dual Moving Magnet Mono Cartridge

VM610xMONO Dual Moving Magnet Mono Cartridge, by Audio Technica.

PLEASE NOTE - This is not the same as the VM610MONO, due to mounting differences. Please ensure you are ordering the correct cartridge for your needs. Do contact us before purchase if you are unsure.

As its name indicates, the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused centre sound image that stereo cartridges can’t provide.

Like all VMx cartridges, the AT-VM610xMONO features PCUHD (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy.

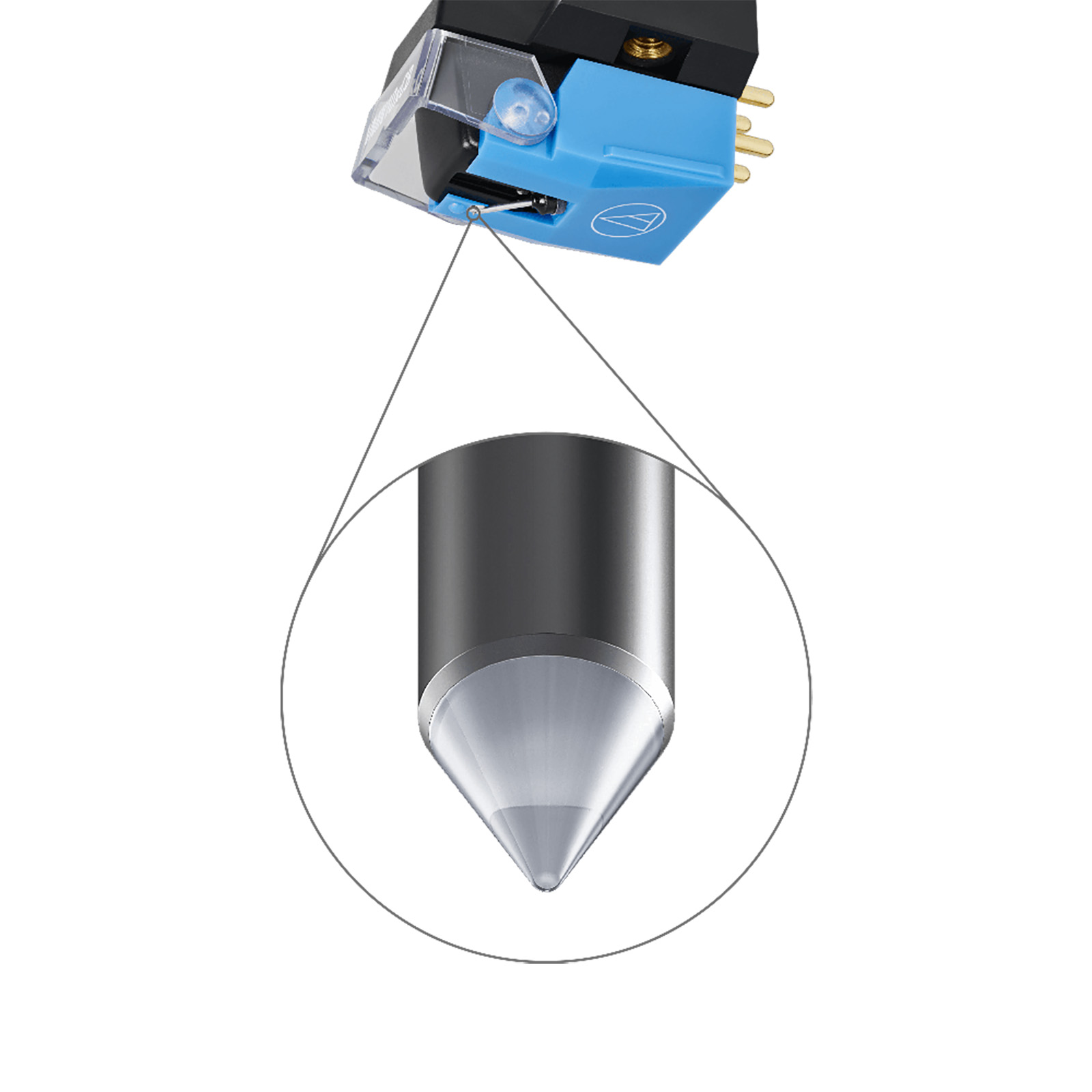

The 0.6 mil conical bonded stylus of the AT-VM610xMONO tracks the center of the record groove for reliable performance and excellent fidelity.

AT have also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables - plus, a new V-cut in the stylus’s flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.

Includes mounting hardware.

Features

• AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus.
• 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity.
• Paratoroidal coils improve generating efficiency for enhanced transient response.
• PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response.
• Threaded inserts make cartridge easier to mount, especially to integrated tonearms.
• V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record.
• Durable low-resonance polymer housing.
• Aluminium cantilever.
• Mono body terminating left and right channels reduces surface noise.
• Compatible with any turntable headshell that accepts 1/2" cartridges.

Specifications

• Frequency Response: 20 - 20,000 Hz
• Vertical Tracking Angle: 20°
• Stylus Construction: Conical Bonded
• Recommended Load Impedance: 47,000 Ω
• Coil Impedance: 1,600 Ω (1 kHz)
• Output Voltage: 5.0 mV (1 kHz, 5 cm/sec.)
• Cantilever: Aluminium Pipe
• Static Compliance: 23 x 10-6 cm/dyne
• Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz)
• Threaded Hole: M2.6 x 2
• Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Recommended Load Capacitance: 150 – 250 pF
• Replacement Stylus: AT-VMN10xCB
• Stylus Curvature Radius: 0.6 mil
• Type: VM
• Weight: 7.2 g

Included

• VM610xMONO Cartridge
• Cartridge Installation Screws (5 mm x 2 / 8 mm x 2 / 10 mm x 2)
• Washer x 2

More Information

• VM610xMONO, by Audio Technica
